You have configured the four EX Series switches with RSTP, as shown in the exhibit. You discover that whenever a link between switches goes up or down, the switches take longer than expected for…

Question

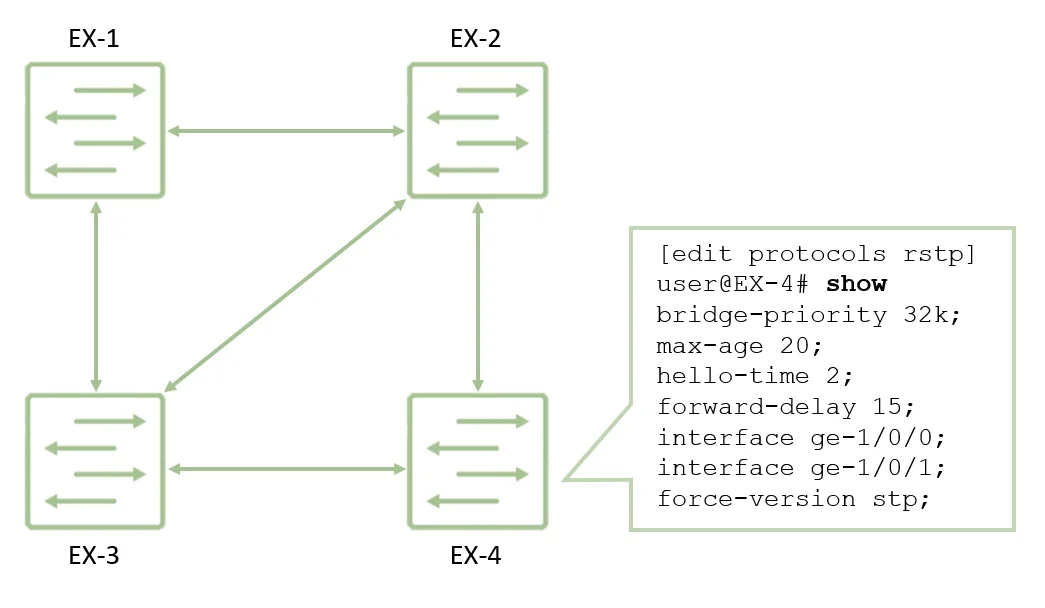

Exhibit

Options

• AThe hello-time must be increased.
• BThe force-version must be removed.
• CThe bridge priority for EX-4 must be set at 4000.
• DThe max-age must be increased to 20

• A
  13% (4)
• B
  77% (23)
• C
  7% (2)
• D
  3% (1)

Explanation

The exhibit shows the configuration of RSTP on EX-4, which has the command force-version stp. This command forces the switch to use the legacy STP protocol instead of RSTP, even though the switch supports RSTP. This means that EX-4 will not be able to take advantage of the faster convergence and enhanced features of RSTP, such as edge ports, link type, and proposal/agreement sequence. The other switches in the network are likely to be running RSTP, as it is the default protocol for EX Series switches. Therefore, there will be a compatibility issue between EX-4 and the other switches, which will result in longer convergence times and suboptimal performance. The switch will also generate a warning message that says "Warning: STP version mismatch with neighbor" when it receives a BPDU from a RSTP neighbor. To solve this problem, the force-version command must be removed from EX-4, so that it can run RSTP natively and interoperate with the other switches in the network. This will enable faster convergence and better stability for the network topology. To remove the command, you can use the delete protocols rstp force-version command in configuration mode.
