JN0-343 · Question #195
Click the Exhibit button. Five routers (R1, R2, R3, R4, and R5) are attached to a single Ethernet LAN and configured with addresses in the same subnet. R1 is chosen as the designated router (DR) and…
The correct answer is A. DR:R1. See the full explanation below for the reasoning.
Question
Click the Exhibit button. Five routers (R1, R2, R3, R4, and R5) are attached to a single Ethernet LAN and configured with addresses in the same subnet. R1 is chosen as the designated router (DR) and R2 is chosen as the backup designated router (BDR). You add R6 and configure it as shown in the exhibit. Which routers are now the DR and BDR?

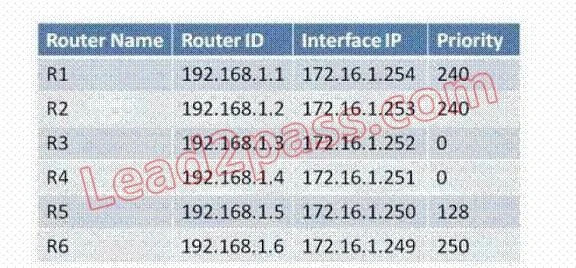

Exhibit
Options
- ADR:R1
- BDR: R6
- CDR: R6
- DDR: R1
How the community answered
(53 responses)- A74% (39)
- B15% (8)
- C4% (2)
- D8% (4)
Community Discussion
No community discussion yet for this question.
