JN0-1330 · Question #28
Click the Exhibit button. Given the data center topology shown in the exhibit, what are two designs that enable the SRX Series devices to inspect all traffic between the webserver and database…
The correct answer is C. Place the Layer 3 gateways for VLAN 100 and VLAN 200 on redundant Ethernet interfaces of the D. Place the Layer 3 gateways for VLAN 100 and VLAN 200 in different virtual routers in the Junos Fusion. Explanation/Reference:
Network Segmentation Design
Question
Click the Exhibit button. Given the data center topology shown in the exhibit, what are two designs that enable the SRX Series devices to inspect all traffic between the webserver and database server? (Choose two.)

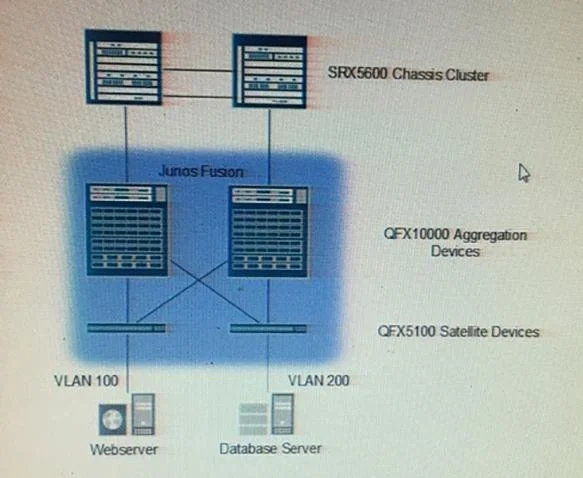

Exhibit
Options
- APlace the Layer 3 gateways for VLAN 100 and VLAN 200 in the same virtual router in the Junos Fusion
- BChange the Junos Fusion configuration so that the webserver and database server are in the same
- CPlace the Layer 3 gateways for VLAN 100 and VLAN 200 on redundant Ethernet interfaces of the
- DPlace the Layer 3 gateways for VLAN 100 and VLAN 200 in different virtual routers in the Junos Fusion
How the community answered
(27 responses)- A7% (2)
- B19% (5)
- C74% (20)
Explanation
Explanation/Reference:
Topics
#VLAN segmentation#SRX traffic inspection#virtual router#Junos Fusion
