JN0-105 · Question #101
Click the Exhibit button. Referring to the exhibit, what is the source IP address of the ping that was executed?
The correct answer is B. 10.23.0.2. The exhibit shows a ping test being executed from router R2 to the IP address 10.23.0.3. Since the ping command is issued on R2 and we see successful replies from 10.23.0.3, it means the source of the ping must be an interface on R2. Given the network diagram and the IP address…
Question
Click the Exhibit button. Referring to the exhibit, what is the source IP address of the ping that was executed?

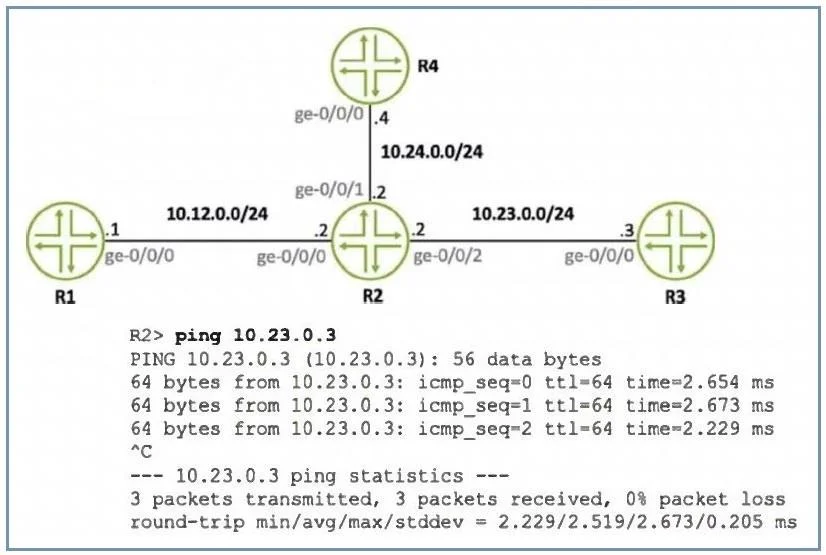

Exhibit
Options
- A10.12.0.2
- B10.23.0.2
- C10.23.0.3
- D10.24.0.4
How the community answered
(32 responses)- A16% (5)
- B72% (23)
- C3% (1)
- D9% (3)
Explanation
The exhibit shows a ping test being executed from router R2 to the IP address 10.23.0.3. Since the ping command is issued on R2 and we see successful replies from 10.23.0.3, it means the source of the ping must be an interface on R2. Given the network diagram and the IP address scheme, the source IP address of the ping is on the interface ge-0/0/2 of R2, which is in the subnet 10.23.0.0/24. The only logical IP address for R2's interface in this subnet, based on standard networking practices and the given options, would be 10.23.0.2. The other addresses provided in the options belong to different subnets or are the destination of the ping itself.
