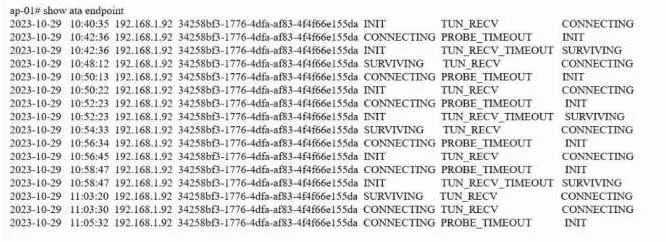

Refer to the exhibit. Given the log output, which statement is true?

Question

Exhibit

Options

• AAP-01's tunnel to 192.168.1.92 is in a survived state.
• BThe gateway with IP address 192.168.1.92 is offline.
• CAP-01 cannot communicate with the HPE Aruba Networking Central tunnel orchestrator.
• DThe gateway tunnel to the AP has a path MTU issue.

• A
  77% (20)
• B
  12% (3)
• C
  4% (1)
• D
  8% (2)

Explanation

Option A is correct because in HPE Aruba networking, a "survived" tunnel state indicates the tunnel between the AP and the gateway is up and operational in survivability mode - the AP successfully established and maintained its tunnel to 192.168.1.92. Option B is wrong because an offline gateway would result in the tunnel being down, not survived - a survived state requires the remote endpoint to be reachable. Option C is incorrect because the log reflects the tunnel state, not Central orchestrator reachability; inability to reach Central would produce a separate log event, not a survived tunnel entry. Option D is wrong because path MTU issues generate PMTUD-specific log messages (fragmentation/ICMP unreachable errors), not a tunnel survived state.

Memory tip: Think of "survived" like a survivor - they're still standing and functional, just operating under difficult conditions. If the gateway were truly down (B), the tunnel wouldn't survive at all.
