HPE7-A07 · Question #12
Which statement is true given the following CLI output from a CX 6300?
The correct answer is A. The underlay loopback addresses are in the 172 21 11 x range. The CLI output displays EVPN routes and their corresponding next hops. The "Route Distinguisher" entries followed by IP addresses in the 172.21.11.x range indicate these are loopback addresses used by the underlay network. The underlay network provides the basic routing and…
Question
Which statement is true given the following CLI output from a CX 6300?

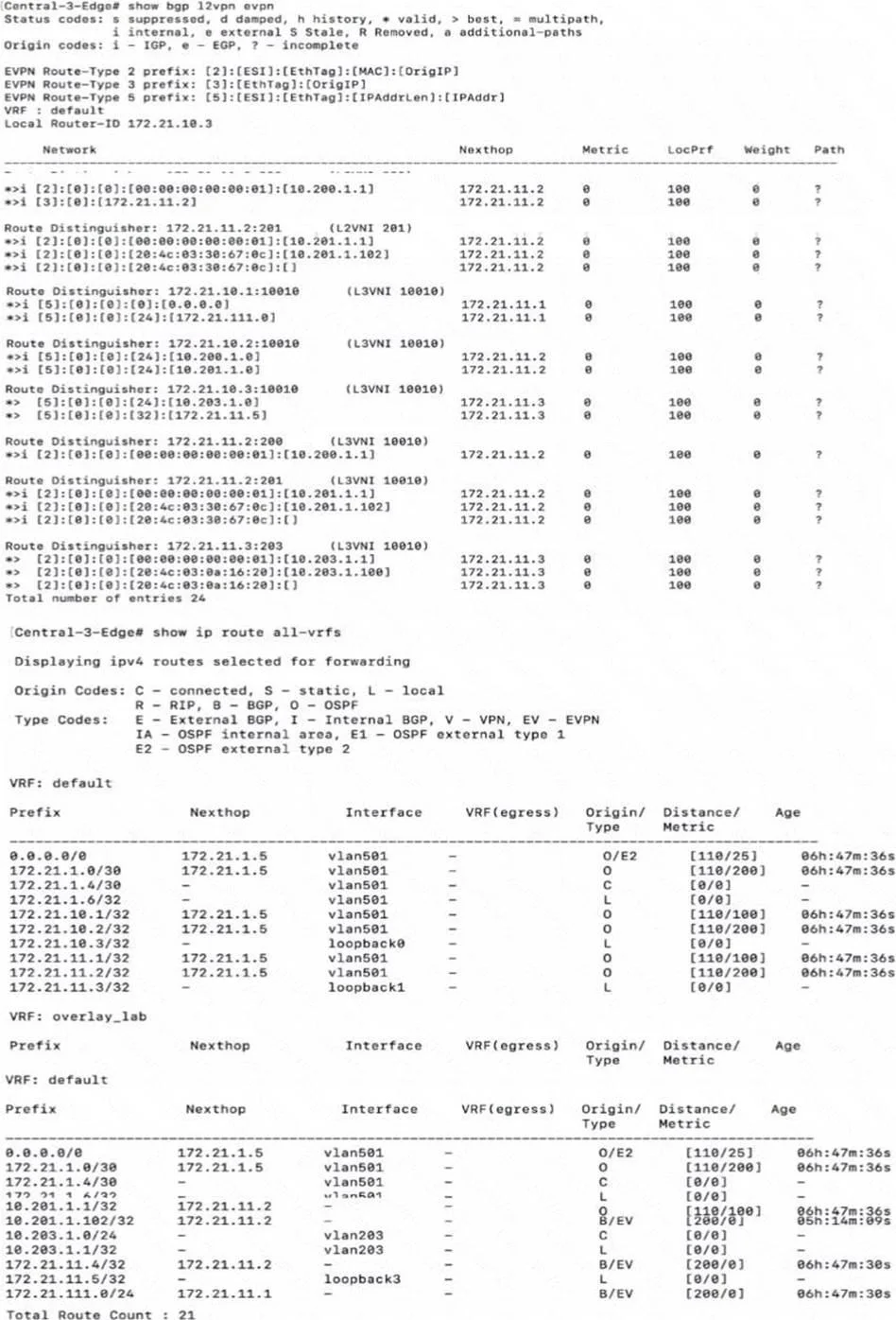

Exhibit
Options
- AThe underlay loopback addresses are in the 172 21 11 x range.
- BThere are two anycast addresses m me overlay fabric.
- CDuplicate MAC addresses were detected in the overlay fabric
- DThere are three active client overlay VLANs in the overlay fabric
How the community answered
(18 responses)- A72% (13)
- B11% (2)
- C17% (3)
Explanation
The CLI output displays EVPN routes and their corresponding next hops. The "Route Distinguisher" entries followed by IP addresses in the 172.21.11.x range indicate these are loopback addresses used by the underlay network. The underlay network provides the basic routing and forwarding plane for the overlay network that EVPN is part of. These loopback addresses are crucial for the proper functioning of the EVPN control plane.
Topics
Community Discussion
No community discussion yet for this question.
