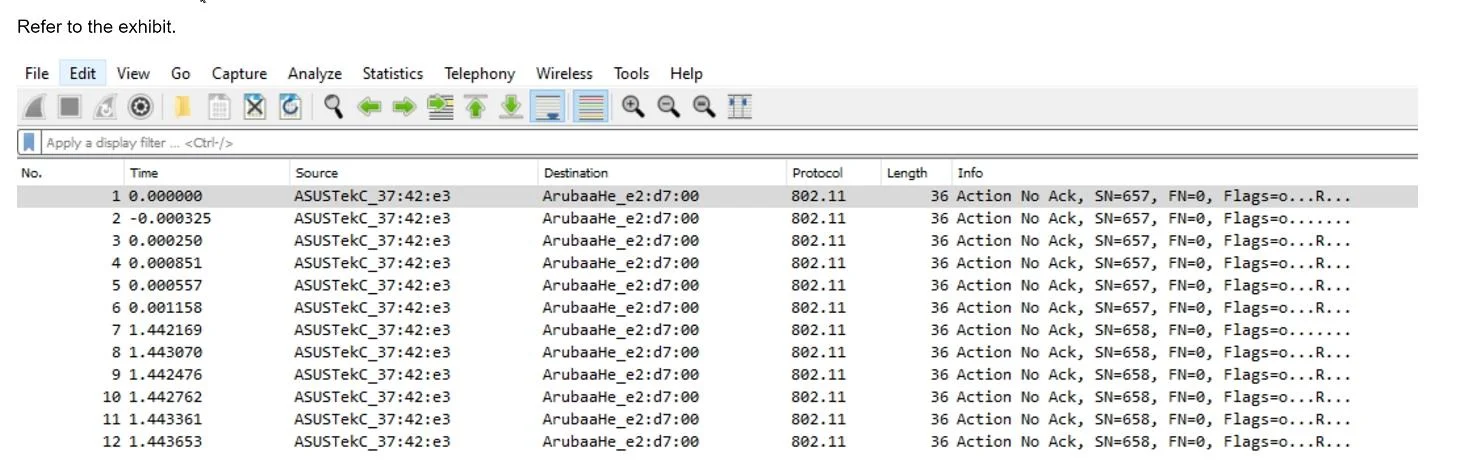

Refer to the Exhibit. You have downloaded a packet capture that you generated on HPE Aruba Networking Central. When you open the capture in Wireshark, you see the output shown in the exhibit. What…

Question

Exhibit

Options

• AChoose to decode UDP port 5555 packets as ARUBA_ERM and set the Aruba ERM Type to 0.
• BEdit preferences for IEEE 802.11 and chose to ignore the Protection bit with IV.
• CApply the following display filter: wlan.fc.type == 1.
• DEdit the Enabled Protocols and make sure that 802.11, GRE, and Aruba_ERM are enabled.

• A
  77% (10)
• C
  15% (2)
• D
  8% (1)

Explanation

To better interpret the packets shown in the Wireshark capture, you should choose to decode UDP port 5555 packets as ARUBA_ERM and set the Aruba ERM Type to 0. This configuration will allow Wireshark to properly decode and display the Aruba-specific encapsulated remote mirroring (ERM) packets, providing a clearer understanding of the traffic. 1. Decoding Protocols: Selecting the correct protocol decoding in Wireshark ensures that the captured packets are interpreted correctly, displaying the relevant information. 2. Aruba ERM: The packets in the capture are likely encapsulated remote mirroring (ERM) packets specific to Aruba, which require proper decoding settings in Wireshark. 3. Clear Interpretation: By setting the Aruba ERM Type to 0 and decoding the packets as ARUBA_ERM, you can view the encapsulated data accurately.
