HPE7-A01 · Question #22
A system engineer needs to preconfigure several Aruba CX 6300 switches that will be sent to a remote office. An untrained local field technician will do the rollout of the switches and the mounting…
The correct answer is C. port-access lldp-group IAP-Group seq 10 match sys-desc 515 seq 20 match sys-desc 575 port-access role IAP-Role description ARUBA AP poe-priority high trust-mode dscp vlan trunk native 100 vlan trunk allowed 100,200,300 port-access device-profile IAP-Profile enable associate role IAP-Role associate lldp-group IAP-Group. Option C is the correct configuration to ensure that APs will work properly. It uses the ap command to configure a port profile for APs with VLAN 100 as the native VLAN and VLAN 200 and 300 as tagged VLANs. It also enables LLDP on the ports to discover the APs and assign them…
Question
A system engineer needs to preconfigure several Aruba CX 6300 switches that will be sent to a remote office. An untrained local field technician will do the rollout of the switches and the mounting of several AP-515s and AP-575S. Cables running to the APs are not labeled. The VLANs are already preconfigured to VLAN 100 (mgmt), VLAN 200 (clients), and VLAN 300 (guests). What is the correct configuration to ensure that APs will work properly? A. B. C.

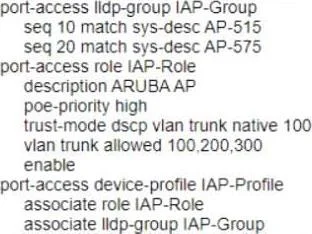

Exhibit
Options
- Aport-access lldp-group IAP-Group seq 10 match sys-desc AP-515 seq 20 match sys-desc AP-575 port-access role IAP-Role description ARUBA AP poe-priority high trust-mode dscp vlan trunk native 100 vlan trunk allowed 100,200,300 enable port-access device-profile IAP-Profile associate role IAP-Role associate lldp-group IAP-Group
- Bport-access lldp-group IAP-Group seq 10 match sys-desc 515 seq 20 match sys-desc 575 port-access role IAP-Role description ARUBA AP poe-priority high trust-mode dscp vlan trunk native 100 vlan trunk allowed 200,300 port-access device-profile IAP-Profile enable associate role IAP-Role associate lldp-group IAP-Group
- Cport-access lldp-group IAP-Group seq 10 match sys-desc 515 seq 20 match sys-desc 575 port-access role IAP-Role description ARUBA AP poe-priority high trust-mode dscp vlan trunk native 100 vlan trunk allowed 100,200,300 port-access device-profile IAP-Profile enable associate role IAP-Role associate lldp-group IAP-Group
How the community answered
(49 responses)- A12% (6)
- B6% (3)
- C82% (40)
Explanation
Option C is the correct configuration to ensure that APs will work properly. It uses the ap command to configure a port profile for APs with VLAN 100 as the native VLAN and VLAN 200 and 300 as tagged VLANs. It also enables LLDP on the ports to discover the APs and assign them to the port profile automatically. The other options are incorrect because they either do not use the ap command, do not enable LLDP, or do not configure the VLANs correctly.
Topics
Community Discussion
No community discussion yet for this question.
