HPE6-A84 Question #51: Real Exam Question with Answer & Explanation

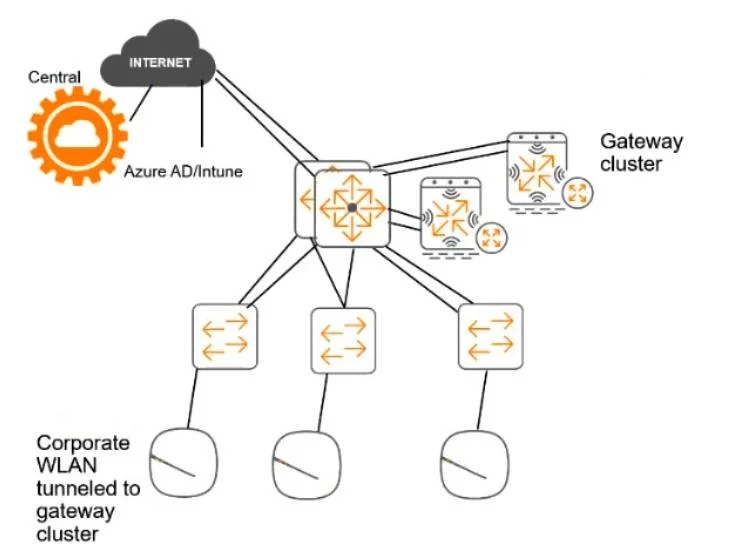

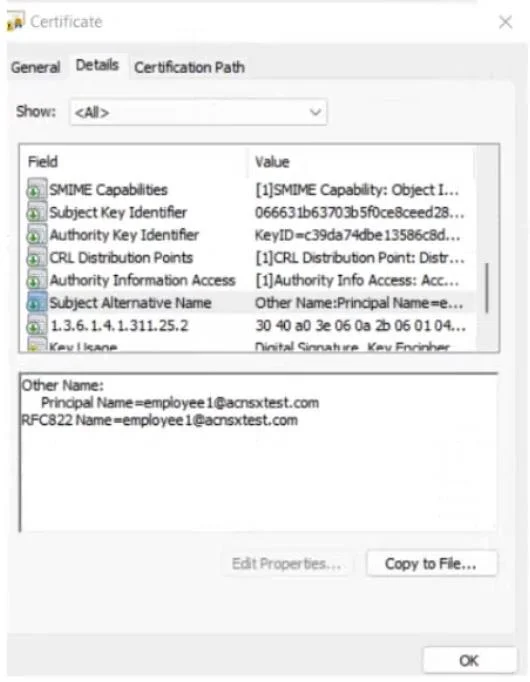

Refer to the scenario. # Introduction to the customer You are helping a company add Aruba ClearPass to their network, which uses Aruba network infrastructure devices. The company currently has a Windows domain and Windows CA. The Window CA issues certificates to domain computers, domain users, and servers such as domain controllers. An example of a certificate issued by the Windows CA is shown here. The company is in the process of adding Microsoft Endpoint Manager (Intune) to manage its mobile clients. The customer is maintaining the on-prem AD for now and uses Azure AD Connect to sync with Azure AD. # Requirements for issuing certificates to mobile clients The company wants to use ClearPass Onboard to deploy certificates automatically to mobile clients enrolled in Intune. During this process, Onboard should communicate with Azure AD to validate the clients. High availability should also be provided for this scenario; in other words, clients should be able to get certificates from Subscriber 2 if Subscriber 1 is down. The Intune admins intend to create certificate profiles that include a UPN SAN with the UPN of the user who enrolled the device. # Requirements for authenticating clients The customer requires all types of clients to connect and authenticate on the same corporate SSID. The company wants CPPM to use these authentication methods: - EAP-TLS to authenticate users on mobile clients registered in Intune - TEAR, with EAP-TLS as the inner method to authenticate Windows domain computers and the users on them - To succeed, EAP-TLS (standalone or as a TEAP method) clients must meet these requirements: - Their certificate is valid and is not revoked, as validated by OCSP - The client's username matches an account in AD # Requirements for assigning clients to roles After authentication, the customer wants the CPPM to assign clients to ClearPass roles based on the following rules: - Clients with certificates issued by Onboard are assigned the "mobile-onboarded" role - Clients that have passed TEAP Method 1 are assigned the "domain-computer" role - Clients in the AD group "Medical" are assigned the "medical-staff" role - Clients in the AD group "Reception" are assigned to the "reception-staff" role The customer requires CPPM to assign authenticated clients to AOS firewall roles as follows: - Assign medical staff on mobile-onboarded clients to the "medical-mobile" firewall role - Assign other mobile-onboarded clients to the "mobile-other" firewall role - Assign medical staff on domain computers to the "medical-domain" firewall role - All reception staff on domain computers to the "reception-domain" firewall role - All domain computers with no valid user logged in to the "computer-only" firewall role Deny other clients access # Other requirements Communications between ClearPass servers and on-prem AD domain controllers must be encrypted. # Network topology For the network infrastructure, this customer has Aruba APs and Aruba gateways, which are managed by Central. APs use tunneled WLANs, which tunnel traffic to the gateway cluster. The customer also has AOS-CX switches that are not managed by Central at this point. # ClearPass cluster IP addressing and hostnames A customer's ClearPass cluster has these IP addresses: Publisher = 10.47.47.5 Subscriber 1 = 10.47.47.6 Subscriber 2 = 10.47.47.7 Virtual IP with Subscriber 1 and Subscriber 2 = 10.47.47.8 The customer's DNS server has these entries cp.acnsxtest.com = 10.47.47.5 cps1.acnsxtest.com = 10.47.47.6 cps2.acnsxtest.com = 10.47.47.7 radius.acnsxtest.com = 10.47.47.8 onboard.acnsxtest.com = 10.47.47.8 The customer has now decided that it needs CPPM to assign certain mobile-onboarded devices to a "nurse-call" AOS user role. These are mobile-onboarded devices that are communicating with IP address 10.1.18.12 using port 4343. What are the prerequisites for fulfilling this requirement?
