HPE6-A79 · Question #64
Refer to the exhibit. An organization provides WiFi access through a corporate SSID with an Aruba Mobility Master (MM) - Mobility Controller (MC) network that includes PEF functions. The…
The correct answer is C. Change the masterip ipsec key to Aruba123 in the device level from the MM, save, then reboot MC1. Explanation/Reference: A network administrator deploys a Mobility Master (MM) pair with the VRRP VIP equal to 10.254.10.214, and attempts to associate MC1 to it. At first, the integration appears to be successful. However after a few minutes the network administrator issues the…
Question

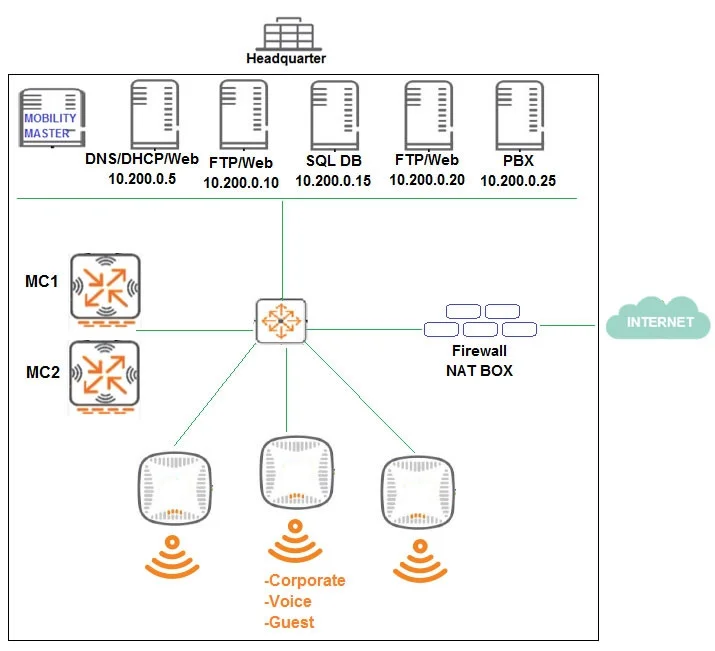

Refer to the exhibit. An organization provides WiFi access through a corporate SSID with an Aruba Mobility Master (MM) - Mobility Controller (MC) network that includes PEF functions. The organization wants to have a single firewall policy configured and applied to the employee role. This policy must allow users to reach Web, FTP, and DNS services, as shown in the exhibit. Other services should be exclusive to other roles. The client NICs should receive IP settings dynamically. Which policy design meets the organization's requirements while minimizing the number of policy rules?
Exhibit
Options
- AChange the localip ipsec key to Aruba123 in the mynode device level from the MM, save, and reboot.
- BEnable disaster recovery mode in MC1 and change the masterip ipsec key to Aruba 123, save, and reboot.
- CChange the masterip ipsec key to Aruba123 in the device level from the MM, save, then reboot MC1.
- DWipe out the configuration in MC1 and reboot, then run the full-setup configuration dialog all over again.
How the community answered
(32 responses)- A28% (9)
- B6% (2)
- C50% (16)
- D16% (5)
Explanation

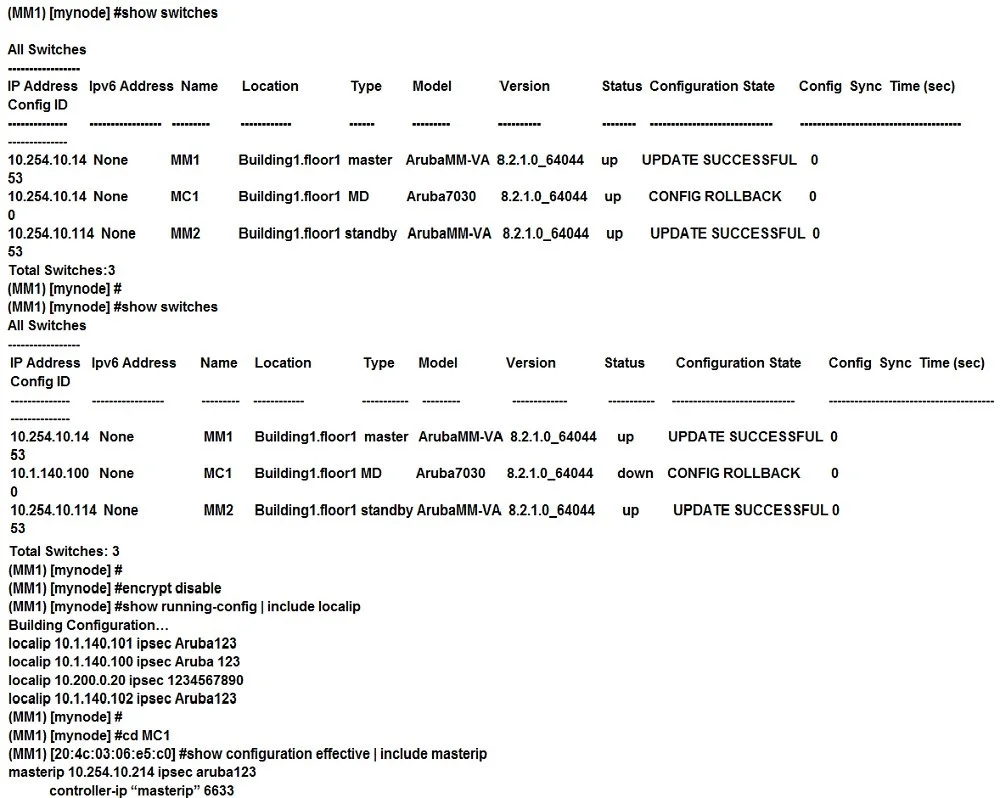

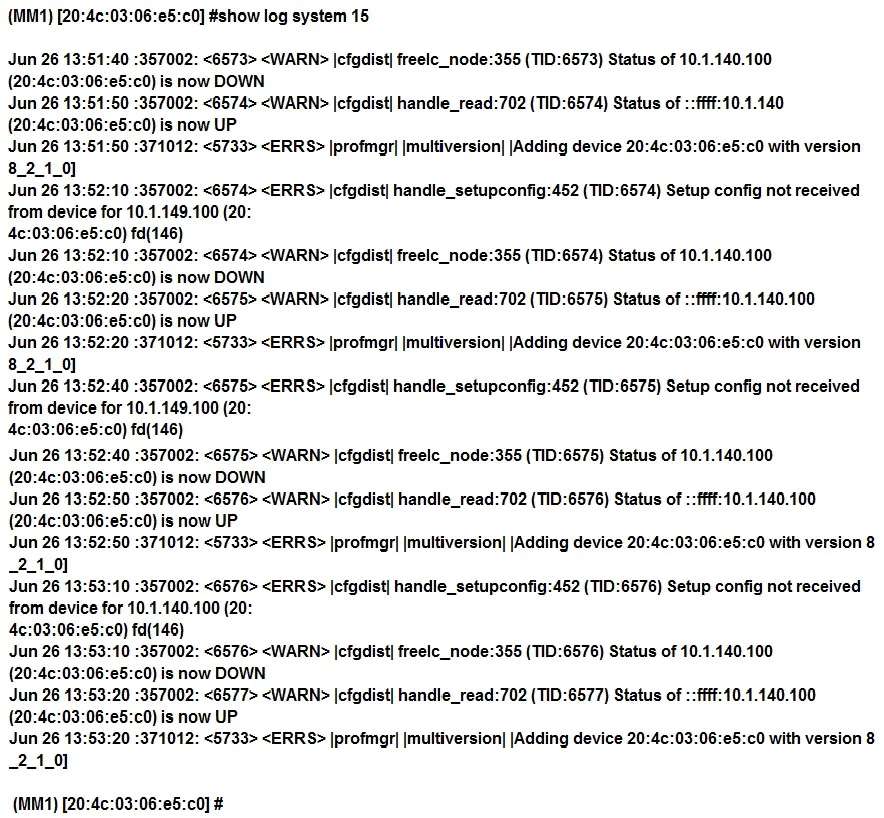

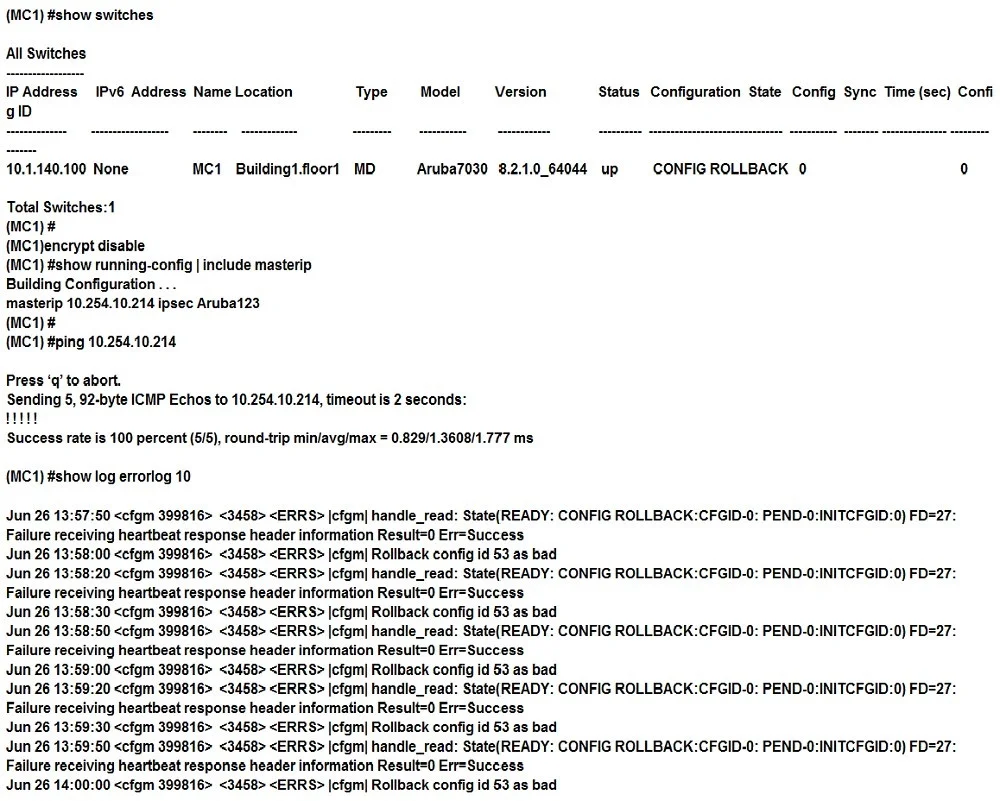

Explanation/Reference: A network administrator deploys a Mobility Master (MM) pair with the VRRP VIP equal to 10.254.10.214, and attempts to associate MC1 to it. At first, the integration appears to be successful. However after a few minutes the network administrator issues the show switches command and sees that the MC1 is down, even though the device is up and running. Every time the network administrator reboots the Mobility Controller (MC), the MC shows as being up and then it shows as being down. The network administrator gathers the information shown in the exhibits. What should the network administrator do to resolve this problem? Explanation/Reference:
Topics
Community Discussion
No community discussion yet for this question.
