HPE0-Y53 · Question #51
Refer to Exhibits: A network administrator is setting up a VPLS solution to connect sites 1, 2, and 3. Exhibit 2 shows part of the configuration. What are correct peer statements for completing the…
The correct answer is C. PE-1: peer 10.1.1.3 pw-id 1003PE-2: peer 10.1.1.1 pw-id 1001PE-3: peer 10.1.1.2 pw-id 1002. See the full explanation below for the reasoning.
Question

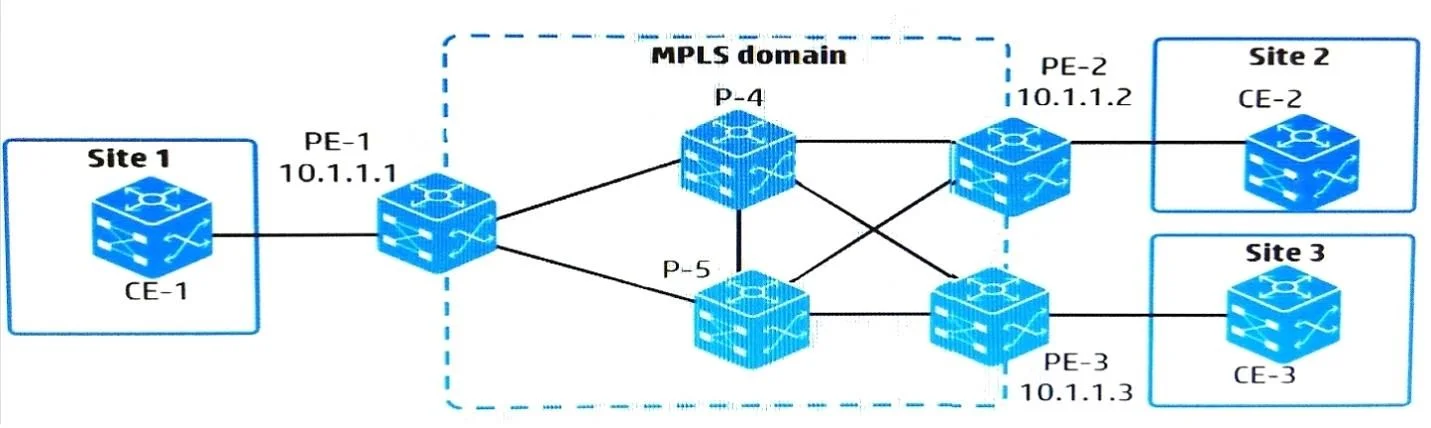

Refer to Exhibits:

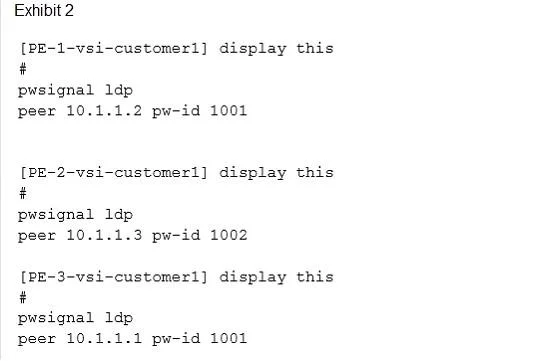

A network administrator is setting up a VPLS solution to connect sites 1, 2, and 3. Exhibit 2 shows part of the configuration. What are correct peer statements for completing the configuration?
Exhibits
Options
- Ape-1: peer 10.1.1.3 pw-id 1001PE-2: peer 10.1.1.1 pw-id 1001PE-3: peer 10.1.1.2 pw-id
- BPE-1:peer 10.1.1.3pw-id 1002PE-2:peer 10.1.1.1 pw-id 1001PE-3: peer 10.1.1.2pw-id
- CPE-1: peer 10.1.1.3 pw-id 1003PE-2: peer 10.1.1.1 pw-id 1001PE-3: peer 10.1.1.2 pw-id 1002
- DPE-1: peer 10.1.1.3 pw-id 1001PE-2: peer 10.1.1.1 pw-id 1002PE-3: peer 10.1.1.2 pw-id 1001
How the community answered
(30 responses)- A7% (2)
- B3% (1)
- C77% (23)
- D13% (4)
Community Discussion
No community discussion yet for this question.
