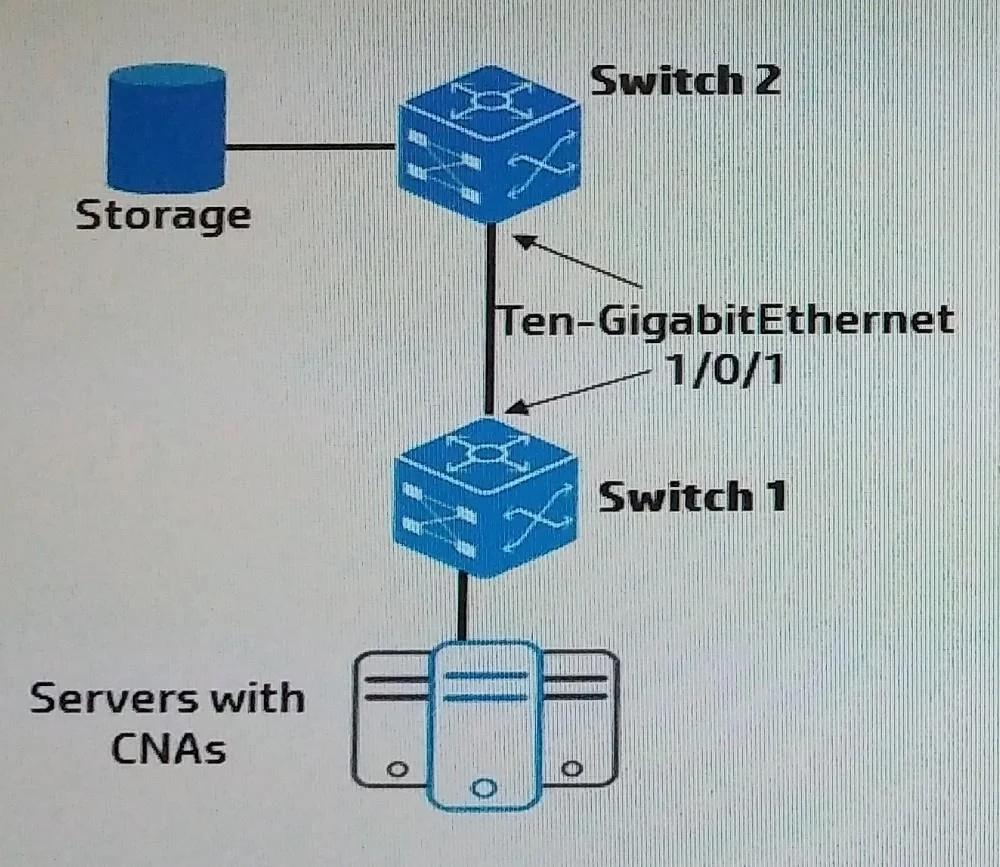

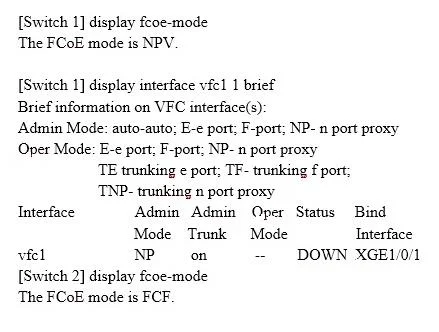

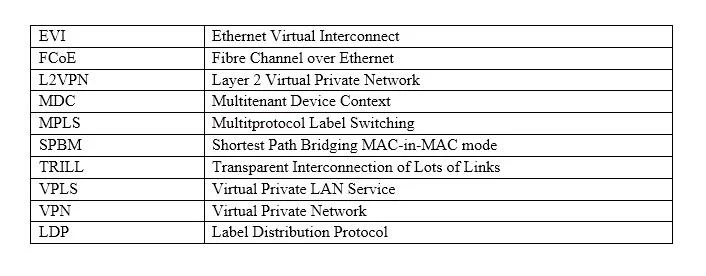

Table of Acronyms Refer to the exhibits. Exhibit 1. Exhibit 2. How should the network administrator configure the FC mode for ten-GigabitEthernet1/0/1 on Switch 2?

Question

Exhibits

Options

• AConfigure E mode on the Ten1/0/1 interface.
• BConfigure NP mode on the Ten 1/0/1 interface.
• CConfigure F mode on a VFC interface that is bound to the Ten1/0/1 interface.
• DConfigured NP mode on a VFC interface that is bound to the Ten1/0/1 interface.

• A
  4% (2)
• B
  17% (8)
• C
  71% (34)
• D
  8% (4)

Explanation

The HP FlexFabric 5900CP switch supports four operating modes. Standard mode is the default mode. FCF, NPV, and Transit modes are advanced modes. The following applies to Switch 2: FCF (Fibre Channel Forwarder)--When a switch operates in this mode, it is called as an FCF switch. In this mode, the following HP FlexFabric 5900CP converged port connections are available: FCoE (which is the case in this question) HP FlexFabric 5900CP (NPIV) VF_Port to a VNP_Port on an NPV switch (which is the case of Note: The following applies to Switch 1: NPV/Gateway Mode--When a switch operates in this mode, it is called as an NPV (N_Port Virtualizer) switch. In this mode, the following HP FlexFabric 5900CP converged port connections are available: FCoE (which is the case in this question) HP FlexFabric 5900CP VF_Port to a VN_Port on a node. HP FlexFabric 5900CP VNP_Port to a VF_Port on an FCF (NPIV) switch (this would be switch2) cId=emr_na-c04216045
