HP2-Z34 · Question #53
Refer to the exhibit. SPBM is being implemented on the backbone links shown in the exhibit. The servers in VLAN 10 (10.1.10.0/24) should be able to communicate at Layer 2 across the backbone. In the…
The correct answer is D. a unique l-SID for the servers and the S-VLAN to which the servers are assigned. See the full explanation below for the reasoning.
Question
Refer to the exhibit. SPBM is being implemented on the backbone links shown in the exhibit. The servers in VLAN 10 (10.1.10.0/24) should be able to communicate at Layer 2 across the backbone. In the vsi section of the configuration on Switch 1. which logical components are required?

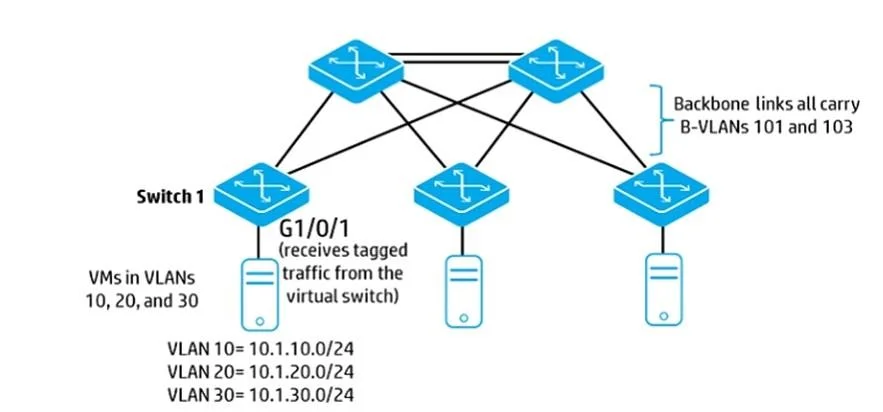

Exhibit
Options
- Athe S-VLAN to which the servers are assigned and the ECT algorithm for distributing their traffic
- Ba unique l-SID for the servers and the B-VLAN that should carry their traffic
- Cthe S-VLAN to which the servers are assigned and the B-VLAN that should carry their traffic
- Da unique l-SID for the servers and the S-VLAN to which the servers are assigned
How the community answered
(55 responses)- A7% (4)
- B2% (1)
- C11% (6)
- D80% (44)
Community Discussion
No community discussion yet for this question.
