HP0-Y49 · Question #62
Refer to the exhibit. Originally, all four switches had the same region configuration. VLAN 14 was added to Switch_D and then mapped to instance 2. How does this affect the MSTP topology?
The correct answer is C. All connectivity is lost, both uplinks are blocked on Switch_D. See the full explanation below for the reasoning.
Question
Refer to the exhibit. Originally, all four switches had the same region configuration. VLAN 14 was added to Switch_D and then mapped to instance 2. How does this affect the MSTP topology?

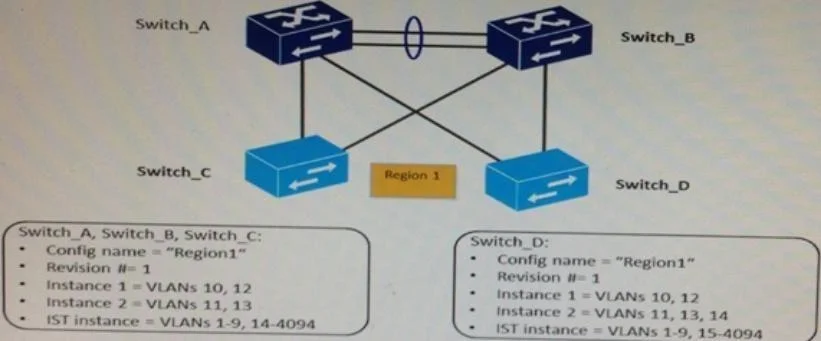

Exhibit
Options
- ALoad sharing is lost,one of the uplinks is blocked for all traffic on Switch_C and Switch_D
- BA layer 2 loop exists and will cause sporadic connectivity issues
- CAll connectivity is lost, both uplinks are blocked on Switch_D
- DLoad sharing is lost, one of the uplinks is blocked for all traffic on Switch_D
How the community answered
(27 responses)- A4% (1)
- B19% (5)
- C70% (19)
- D7% (2)
Community Discussion
No community discussion yet for this question.
