Question
View the exhibits. Exhibit 1 The frame has these characteristics:
- VLANID = 3
- 802.1p = 3
- DSCP=32
- Source IP address = 10.1.1.5
Exhibit 2 The frame shown in Exhibit 1 arrives on an HP 5800 switch's GigabitEthernet port 1/0/1. QoS maps are at their default settings. Based on the configuration shown in Exhibit 2, to which queue is the outbound packet assigned?

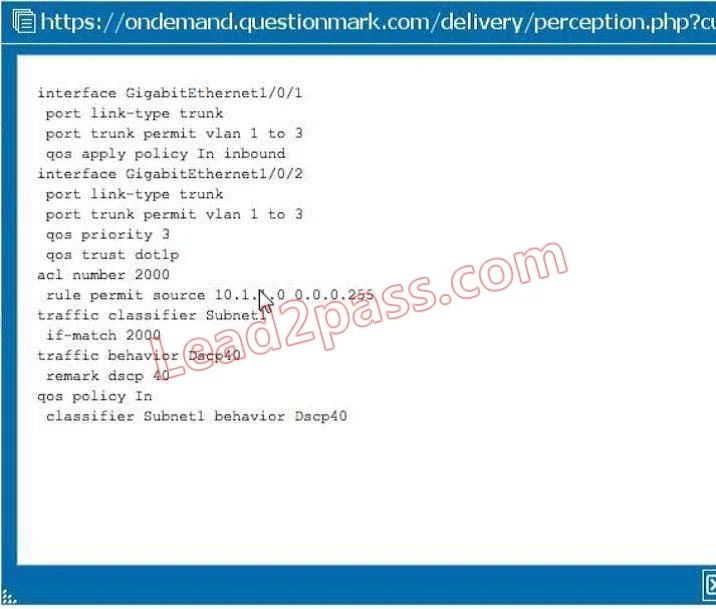

Exhibit
Options
- A2
- B3
- C4
- D5
How the community answered
(21 responses)- A10% (2)
- B5% (1)
- C5% (1)
- D81% (17)
Explanation
How this traffic gets marked? - The policy is applied to the interface Gi 1/0/1 with inbound direction, which means that the traffic that comes into the port gets the policy applied. - As the frame matches the ACL subnet, it will remark the value of DSCP to 40 - Looking at the default table parameters, the traffic gets into the queue 5 (The outbound packet in this case refers to the same packet being placed to go out of the interface, after the values have been applied)
