H12-891_V1.0 · Question #76
As shown in the figure, a certain L3VPN Over SRv6BE networking is used. PE1 and PE2 pass the BGP neighbor relationship through the loopback0 interface. If you want to realize the intercommunication…
The correct answer is B. BGP ipv4-family vpnv4 view. See the full explanation below for the reasoning.
MPLS and VPN Technologies
Question
As shown in the figure, a certain L3VPN Over SRv6BE networking is used. PE1 and PE2 pass the BGP neighbor relationship through the loopback0 interface. If you want to realize the intercommunication between 192.168.1.0/24 and 192.168.2.0/24 based on the SRv6 tunnel in the SR domain, then In which command view do I need to enable the exchange of Prefix SID information between IPv6 peers?

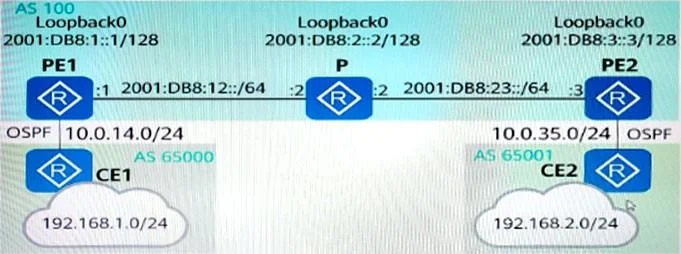

Exhibit
Options
- ASystem view
- BBGP ipv4-family vpnv4 view
- CBGP IPv4VPN instance view
- DBGP view
How the community answered
(36 responses)- A6% (2)
- B81% (29)
- C11% (4)
- D3% (1)
Topics
#L3VPN over SRv6 BE#Prefix SID#BGP vpnv4#SRv6 tunnel
