H12-891_V1.0 · Question #596
The topology shown in the figure uses VXLAN distributed gateway. VBDIF10 on SW1 is configured with: arp-proxylocalenable command. Which items in the following description are correct? (Multiple…
The correct answer is A. SW1 receives the message sent from PC1 to PC2 and will perform L3 table lookup and B. The ARP entry on PC1 is: 172.16.1.2 MAC D. See the full explanation below for the reasoning.
Data Center Network Technologies
Question

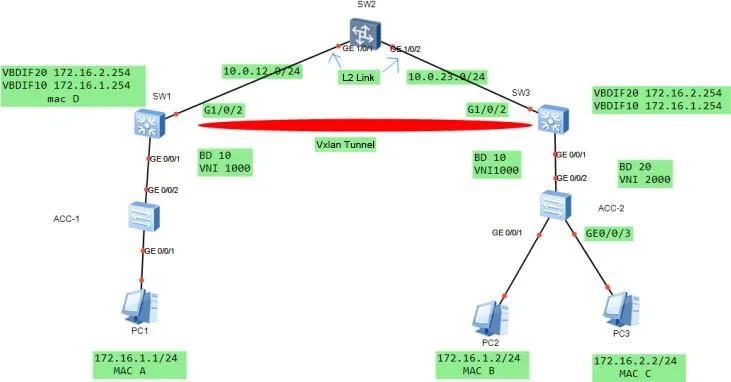

The topology shown in the figure uses VXLAN distributed gateway. VBDIF10 on SW1 is configured with: arp-proxylocalenable command. Which items in the following description are correct? (Multiple choice)
Exhibit
Options
- ASW1 receives the message sent from PC1 to PC2 and will perform L3 table lookup and
- BThe ARP entry on PC1 is: 172.16.1.2 MAC D
- CSW1 receives the message sent from PC1 to PC2 and will perform L2 table lookup and
- DThe ARP entry on PC1 is: 172.16.1.2 MAC B
How the community answered
(33 responses)- A76% (25)
- C15% (5)
- D9% (3)
Topics
#VXLAN distributed gateway#ARP proxy#L2 L3 forwarding#VBDIF
Community Discussion
No community discussion yet for this question.
