H12-891_V1.0 · Question #482
As shown in the figure, PE1 and PE2 exchange private network routing information with their respective CEs through OSPF, and the same Domain ID is configured on both PE1 and PE2. When importing…
The correct answer is A. Type7 LSA B. Type3 LSA D. Type5 LSA. See the full explanation below for the reasoning.
MPLS and VPN Technologies
Question

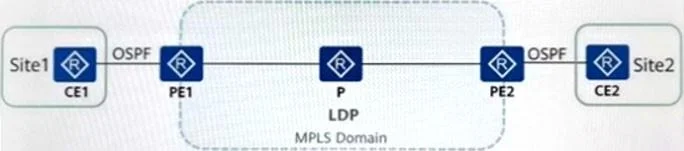

As shown in the figure, PE1 and PE2 exchange private network routing information with their respective CEs through OSPF, and the same Domain ID is configured on both PE1 and PE2. When importing routes from BGP to OSPF on PE2, which of the following types of LSAs may be passed to CE2? (Multiple choice)
Exhibit
Options
- AType7 LSA
- BType3 LSA
- CType1 LSA
- DType5 LSA
How the community answered
(70 responses)- A77% (54)
- C23% (16)
Topics
#MPLS VPN#OSPF LSA types#Domain ID#BGP-to-OSPF redistribution
