H12-891_V1.0 · Question #480
The following figure shows MPLS VPN cross-domain Option C method 2, and RR is deployed in the domain, and all traffic does not pass through the RR when forwarded. If the data packet with destination…
The correct answer is B. V1 is allocated by PE1 D. T1 is allocated by P2. See the full explanation below for the reasoning.
MPLS and VPN Technologies
Question

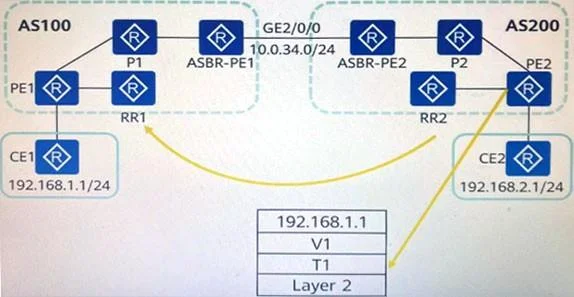

The following figure shows MPLS VPN cross-domain Option C method 2, and RR is deployed in the domain, and all traffic does not pass through the RR when forwarded. If the data packet with destination 192.168.1.1 sent from PE2 carries a Layer 2 label, what are the correct descriptions of the Layer 2 label? (Multiple choice)
Exhibit
Options
- AT1 is allocated by RR2
- BV1 is allocated by PE1
- CV1 is allocated by P2
- DT1 is allocated by P2
How the community answered
(21 responses)- A10% (2)
- B86% (18)
- C5% (1)
Topics
#MPLS VPN#cross-domain Option C#label allocation#RR inter-domain
