Huawei
H12-831_V1.0 · Question #86
As shown in the OSPF network, the area numbers are marked in the figure, where area 1 is a common area, area 2 is a Totally NSSA area, and area 3 is an NSSA area. R5 introduces the external route…
The correct answer is A. R2 B. R3 C. R4 D. R6. See the full explanation below for the reasoning.
Question

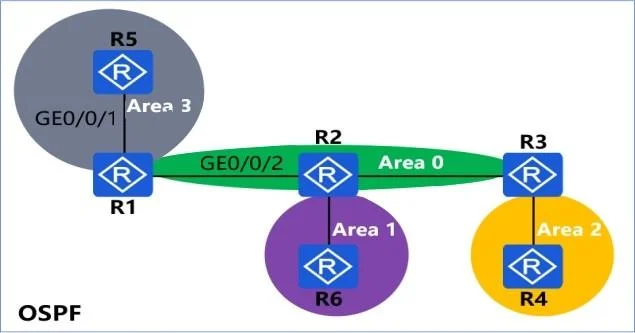

As shown in the OSPF network, the area numbers are marked in the figure, where area 1 is a common area, area 2 is a Totally NSSA area, and area 3 is an NSSA area. R5 introduces the external route 10.0.5.5/32 into OSPF. Which of the following routers have a route entry for 10.0.5.5/32 in their routing tables? (Multiple choice)
Exhibit
Options
- AR2
- BR3
- CR4
- DR6
How the community answered
(19 responses)- A100% (19)
Community Discussion
No community discussion yet for this question.
