H12-831_V1.0 · Question #78
In the network shown in the figure, IS-IS IPv6 runs between R2, R6, and R3, and the IPv6 address of R6 Looback0 interface is 2000::6/128. Other links all run OSPFv3. Area 1 is a stub area and Area 2…
The correct answer is A. Configure "ipv6 default-route-advertise always level-1" in the IS-IS process of R3. B. Configure "attached-bit advertise always" in the IS-IS process of R2. C. Configure "ipv6 default-route-advertise always level-1" in the IS-IS process of R2. D. Configure "attached-bit advertise always" in the IS-IS process of R3. See the full explanation below for the reasoning.
Question

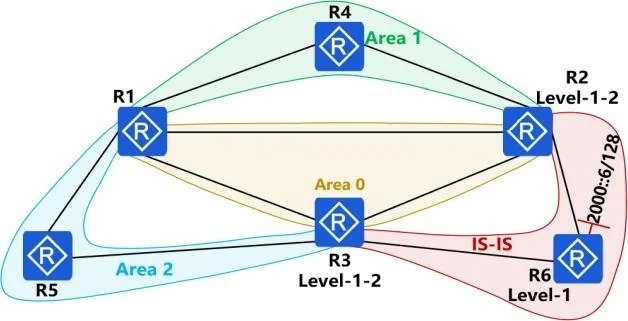

In the network shown in the figure, IS-IS IPv6 runs between R2, R6, and R3, and the IPv6 address of R6 Looback0 interface is 2000::6/128. Other links all run OSPFv3. Area 1 is a stub area and Area 2 is an NSSA area. IS-IS routes are imported into OSPFv3 on R2 and R3. Which of the following methods can enable R4 to ping 2000::6? (Multiple choice)
Exhibit
Options
- AConfigure "ipv6 default-route-advertise always level-1" in the IS-IS process of R3.
- BConfigure "attached-bit advertise always" in the IS-IS process of R2.
- CConfigure "ipv6 default-route-advertise always level-1" in the IS-IS process of R2.
- DConfigure "attached-bit advertise always" in the IS-IS process of R3
How the community answered
(33 responses)- A100% (33)
Community Discussion
No community discussion yet for this question.
