H12-831_V1.0 · Question #58
As shown in the figure, R1, R2, and R3 run WPLS, and the administrator configures a static LSP from the 1.1.1.0/24 network segment to the 3.3.3.0/24 network segment. Which of the following…
The correct answer is B. R1 will perform MPLS forwarding on the traffic sent from PC1 to PC2. D. PC2 can access PC1. See the full explanation below for the reasoning.
Question
As shown in the figure, R1, R2, and R3 run WPLS, and the administrator configures a static LSP from the 1.1.1.0/24 network segment to the 3.3.3.0/24 network segment. Which of the following descriptions of this scene are correct? (Multiple choice)

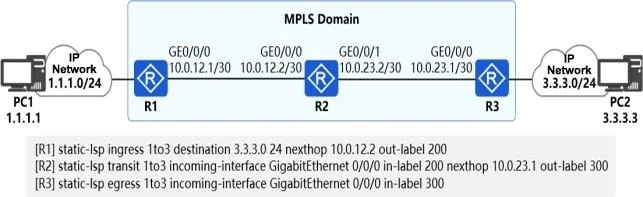

Exhibit
Options
- AR3 will perform MPLS forwarding on the traffic sent from PC2 to PC1.
- BR1 will perform MPLS forwarding on the traffic sent from PC1 to PC2.
- CPC1 cannot access PC2
- DPC2 can access PC1
How the community answered
(59 responses)- A10% (6)
- B71% (42)
- C19% (11)
