In the enterprise network shown in the figure, R3 is connected to the enterprise network management server, and all devices in the network communicate with the network management server through VPN…
The correct answer is B. undo vpn-target 3:1 import-extcommunity C. undo vpn-target 1:3 export-extcommunity D. undo vpn-target 2:3 export-extcommunity. See the full explanation below for the reasoning.
Question

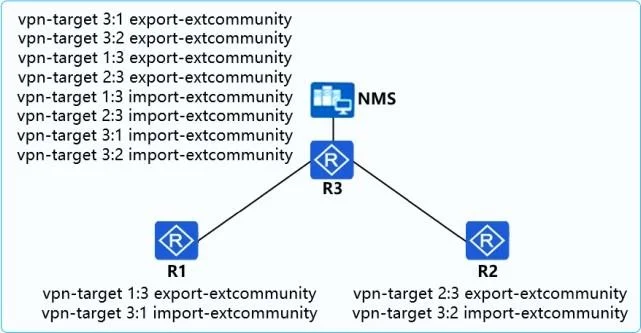

In the enterprise network shown in the figure, R3 is connected to the enterprise network management server, and all devices in the network communicate with the network management server through VPN. During the inspection, it was found that R3 had redundant RT configurations. Which of the following commands can be executed on R3 to delete the redundant RTs without affecting the connectivity of all devices and the network management server? (Multiple choice)
Exhibit
Options
- Aundo vpn-target 1:3 import-extcommunity
- Bundo vpn-target 3:1 import-extcommunity
- Cundo vpn-target 1:3 export-extcommunity
- Dundo vpn-target 2:3 export-extcommunity
How the community answered
(56 responses)- A18% (10)
- B82% (46)
Community Discussion
No community discussion yet for this question.
