H12-831_V1.0 · Question #356
In the network shown in the figure, adjacent routers use directly connected interfaces to establish EBGP neighbor relationships. The Router ID of each device is 10.0.XX, and the AS number is 6500X…
The correct answer is B. R3-R5-R1. See the full explanation below for the reasoning.
Question

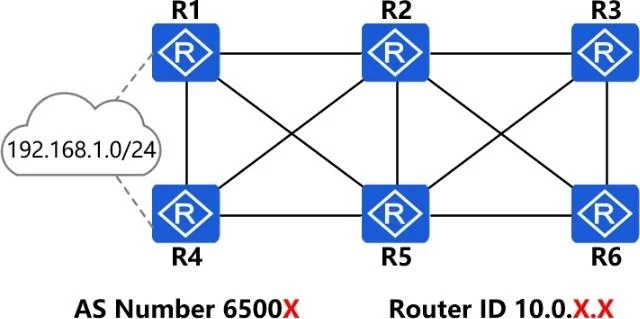

In the network shown in the figure, adjacent routers use directly connected interfaces to establish EBGP neighbor relationships. The Router ID of each device is 10.0.XX, and the AS number is 6500X, where X is the router number. R1 and R4 both have static routes to 192.168.1.0/24, which are introduced into BGP through import. If the "ageregate 192.168.1.016 detail-suppresed command" is configured on R1, which of the following is the traffic path from R3 to 192.168.1.0/24?
Exhibit
Options
- AR3-R2-R1
- BR3-R5-R1
- CR-R6-R5-R1
- DR3-R5-R4
How the community answered
(19 responses)- A5% (1)
- B79% (15)
- C5% (1)
- D11% (2)
Community Discussion
No community discussion yet for this question.
