Huawei
H12-831_V1.0 · Question #344
In the OSPF network shown in the figure, the cost value of the link has been marked in the figure. R1 has enabled OSPFIP FRR. Which of the following descriptions are correct? (Multiple choice)
The correct answer is A. If the BFD detection function is enabled on the entire network (the detection parameters are set to C. If the S1 device loses power, R1 directly uses the backup path to reach R3. See the full explanation below for the reasoning.
Question

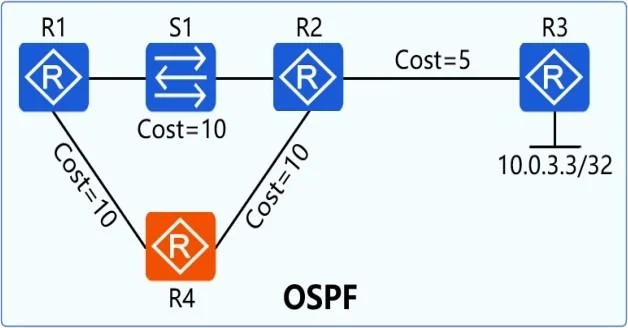

In the OSPF network shown in the figure, the cost value of the link has been marked in the figure. R1 has enabled OSPFIP FRR. Which of the following descriptions are correct? (Multiple choice)
Exhibit
Options
- AIf the BFD detection function is enabled on the entire network (the detection parameters are set to
- BR1 cannot form a backup path to 10.0.3.3/32
- CIf the S1 device loses power, R1 directly uses the backup path to reach R3
- DIf the link between R1 and S1 is disconnected, R1 directly uses the backup path to reach R3
How the community answered
(33 responses)- A82% (27)
- B6% (2)
- D12% (4)
Community Discussion
No community discussion yet for this question.
