H12-831_V1.0 · Question #322
As shown in the figure, a network administrator implements MPLS data forwarding by configuring static LSP. Below the topology diagram is the administrator's packet capture information of a certain…
The correct answer is B. PC1 pings PC2 C. The message from PC1 to PC2 is forwarded based on the MPLS label in the MPLS domain. D. The message from PC2 to P01 is forwarded based on the IP header in the MPLs domain. See the full explanation below for the reasoning.
Question

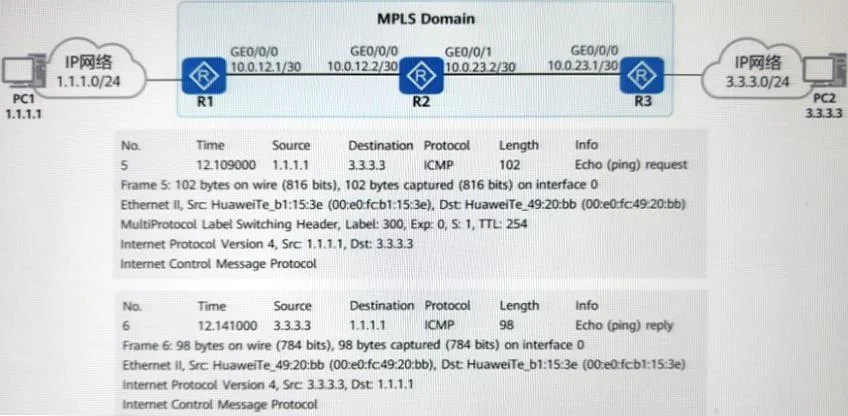

As shown in the figure, a network administrator implements MPLS data forwarding by configuring static LSP. Below the topology diagram is the administrator's packet capture information of a certain device. Which of the following descriptions of this information are correct? (Multiple choice)
Exhibit
Options
- AIf the packet capture device is R3, then R3 will perform IP forwarding on the packets from PC1 to
- BPC1 pings PC2
- CThe message from PC1 to PC2 is forwarded based on the MPLS label in the MPLS domain.
- DThe message from PC2 to P01 is forwarded based on the IP header in the MPLs domain
How the community answered
(54 responses)- A26% (14)
- B74% (40)
Community Discussion
No community discussion yet for this question.
