Huawei
H12-831_V1.0 · Question #3
In the OSPF network shown in the figure, the area numbers are marked in the figure, where area 1 is the Stub area, area 2 is the Totally Stub area, and area 3 is the NSSA area. By default, which of…
The correct answer is A. R3. See the full explanation below for the reasoning.
Question

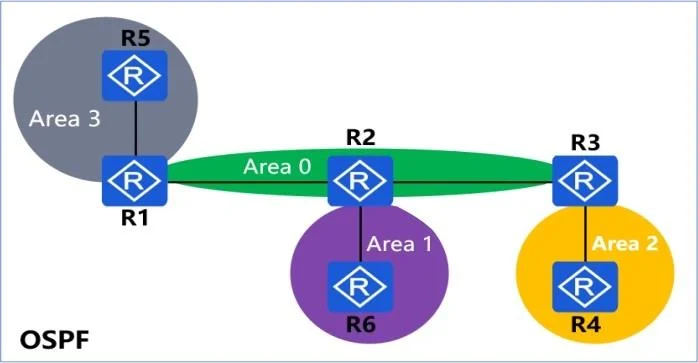

In the OSPF network shown in the figure, the area numbers are marked in the figure, where area 1 is the Stub area, area 2 is the Totally Stub area, and area 3 is the NSSA area. By default, which of the following routers does not have a default route in its routing table?
Exhibit
Options
- AR3
- BR5
- CR4
- DR6
How the community answered
(40 responses)- A73% (29)
- B10% (4)
- C3% (1)
- D15% (6)
