H12-831_V1.0 · Question #284
In the network shown in the figure, adjacent routers use directly connected interfaces to establish EBGP neighbor relationships. The Router ID of each device is 10.0.XX, and the AS number is 6500X…
The correct answer is A. The traffic path from R3 to 192.168.1.0/24 is R3-R2-R1 C. The traffic path from R2 to 192.168.1.0/24 is R2-R1. See the full explanation below for the reasoning.
Question
In the network shown in the figure, adjacent routers use directly connected interfaces to establish EBGP neighbor relationships. The Router ID of each device is 10.0.XX, and the AS number is 6500X, where X is the router number. R1 and R4 both have static routes to 192.168.1.0/24, which are introduced into BGP through import. Which of the following statements are correct by default? (Multiple choice)

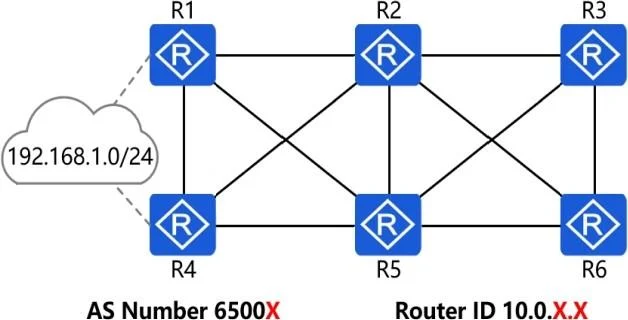

Exhibit
Options
- AThe traffic path from R3 to 192.168.1.0/24 is R3-R2-R1
- BThe traffic path from R5 to 192.168.1.0/24 is R5-R4
- CThe traffic path from R2 to 192.168.1.0/24 is R2-R1
- DThe traffic path from R6 to 192.168.1.0/24 is R6-R5-R4
How the community answered
(59 responses)- A78% (46)
- B8% (5)
- D14% (8)
Community Discussion
No community discussion yet for this question.
