H12-831_V1.0 · Question #282
As shown in the figure, VLAN aggregation function is deployed in a switching network, in which Sub-VLAN 10 and Sub-VLAN 20 are both added to Super-VLAN 100. which of the following descriptions are…
The correct answer is A. PC1 can communicate with PC4 at Layer 2 because hosts in the same Sub-VLAN can D. PC1 can communicate directly with PC2 at Layer 2 because they belong to the same S6-VLAN. See the full explanation below for the reasoning.
Question

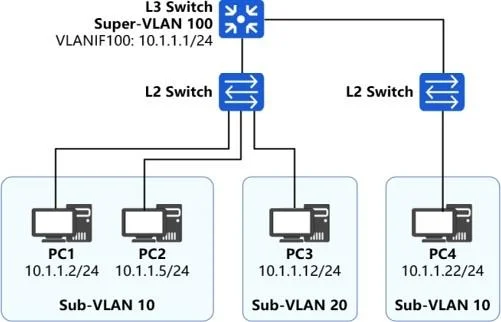

As shown in the figure, VLAN aggregation function is deployed in a switching network, in which Sub-VLAN 10 and Sub-VLAN 20 are both added to Super-VLAN 100. which of the following descriptions are correct for the communication between PCs in this scenario? (Multiple choice)
Exhibit
Options
- APC1 can communicate with PC4 at Layer 2 because hosts in the same Sub-VLAN can
- BPC2 can communicate directly with PC3 at Layer 2 because they belong to the same IP subnet
- CPC2 cannot communicate with PC4 at Layer 2 because the Super-VLAN to which PC2 belongs is
- DPC1 can communicate directly with PC2 at Layer 2 because they belong to the same S6-VLAN
How the community answered
(43 responses)- A81% (35)
- B12% (5)
- C7% (3)
Community Discussion
No community discussion yet for this question.
