Huawei
H12-831_V1.0 · Question #157
As shown in the figure, the VRRP virtual IP address of network R1 and R2 is configured as 10.0.12.254. After the configuration is completed, the network engineer checks the VRRP status on R1 and R2…
The correct answer is A. R1 and R2 have different priorities in the VRRP backup group. See the full explanation below for the reasoning.
Question

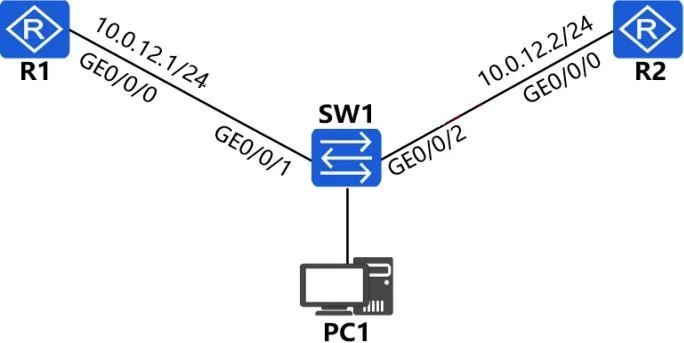

As shown in the figure, the VRRP virtual IP address of network R1 and R2 is configured as 10.0.12.254. After the configuration is completed, the network engineer checks the VRRP status on R1 and R2. Both devices are in the Master state. Which of the following will not cause this phenomenon?
Exhibit
Options
- AR1 and R2 have different priorities in the VRRP backup group.
- BSW1 GE0/0/1 and GE0/0/2 interfaces belong to different VLANs
- CThe virtual IP addresses configured on R1 and R2 are inconsistent
- DVRIDs configured on R1 and R2 are inconsistent
How the community answered
(36 responses)- A81% (29)
- B11% (4)
- C6% (2)
- D3% (1)
Community Discussion
No community discussion yet for this question.
