H12-831_V1.0 · Question #154
A message with a destination IP address of 4.4.4.4 forwarded by R1 is transmitted in an MPLS network. Part of the LSP information of R3 is shown in the figure. Which of the following devices will…
The correct answer is A. R3 C. R1 D. R2. See the full explanation below for the reasoning.
Question
A message with a destination IP address of 4.4.4.4 forwarded by R1 is transmitted in an MPLS network. Part of the LSP information of R3 is shown in the figure. Which of the following devices will perform MPLS label operations during the transmission of the message? (Multiple choice)

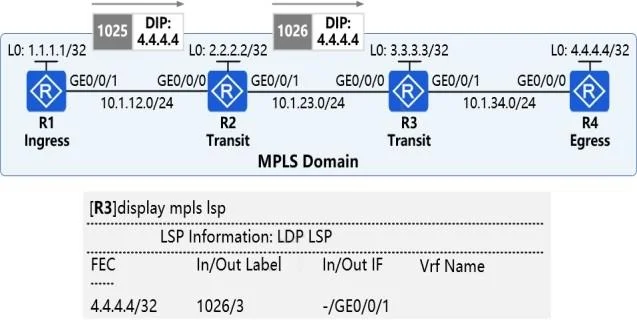

Exhibit
Options
- AR3
- BR4
- CR1
- DR2
How the community answered
(31 responses)- A84% (26)
- B16% (5)
Community Discussion
No community discussion yet for this question.
