H12-831_V1.0 · Question #142
As shown in the figure, the OSPF network has the area number marked in the figure. Area 1, Area 2, and Area 3 are all common areas. The 1P address of the R5 Lo0pback0 interface is 10.0.5.5/32, and…
The correct answer is A. R2 B. R3 D. R4. See the full explanation below for the reasoning.
Question

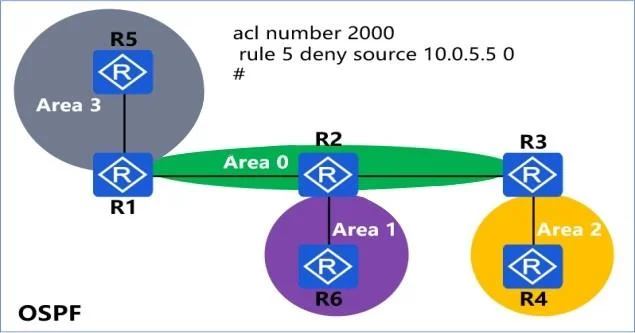

As shown in the figure, the OSPF network has the area number marked in the figure. Area 1, Area 2, and Area 3 are all common areas. The 1P address of the R5 Lo0pback0 interface is 10.0.5.5/32, and the interface enables OSPF through the network method. Tac12000 is configured on all routers, and the matching rules are shown in the figure. In area 0 of R1, R2, and R3, "filter 2000 import" is configured. Which of the following routers' routing tables do not have a route entry for 10.0.5.5/32? (Multiple choice)
Exhibit
Options
- AR2
- BR3
- CR1
- DR4
How the community answered
(23 responses)- A74% (17)
- C26% (6)
Community Discussion
No community discussion yet for this question.
