An engineer is deploying a wireless network. Portal authentication is used for guest access, the authentication point is the wireless controller, and the authentication server uses iMaster NCE…

Question

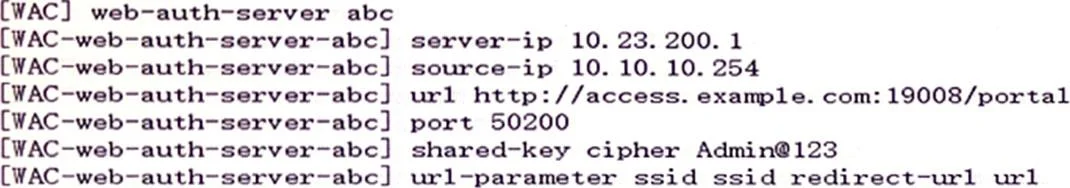

Exhibit

Options

• AThe port number for processing Portal protocol packets on the device is 50200.
• BThe IP address for communication between the device and the Portal server is 10.10.10.254
• CThe URL redirected to the user will contain the ssid name.
• DThe IP address of the Portal server is 10.23.200.1

• A
  17% (3)
• B
  83% (15)

Explanation

Options B, C, and D are correct because they accurately reflect standard Huawei Portal authentication configuration parameters visible in the wireless controller's Portal server template: the device source IP (10.10.10.254) is the wireless controller's interface address used for communicating with the Portal server, the Portal server IP (10.23.200.1) is the iMaster NCE-Campus address, and when SSID URL parameters are enabled in the template, the redirect URL dynamically appends the SSID name so the Portal page can customize the authentication experience.

Option A is wrong because 50200 is the Portal server's listening port (the port on iMaster NCE-Campus), not the port the device itself uses to process incoming Portal protocol packets - these are two distinct ports in the Huawei Portal architecture, and confusing server-side vs. device-side ports is a common trap.

Memory tip: Think of the Portal flow as a three-actor play - Device, Portal Server, Auth Server. For each config value, ask "whose address/port is this?" The device IP (B) belongs to the controller, the server IP (D) belongs to iMaster NCE-Campus, and URL parameters (C) are what the redirect carries to the Portal page. If an option flips ownership (like claiming the server's port belongs to the device), it's wrong.
