H12-721 · Question #213
Shown below is an IPSec standby scenario, with main link A and backup link B. Assuming that on link B the next-hop IP address is 10.10.1.2 and 10.10.1.3, and we want to ensure that the primary and…
The correct answer is C. [USG] ip route-static 0.0.0.0 0.0.0.0 10.10.1.2 track ip-link 1 [USG] ip route-static 0.0.0.0 0.0.0.0. See the full explanation below for the reasoning.
Question

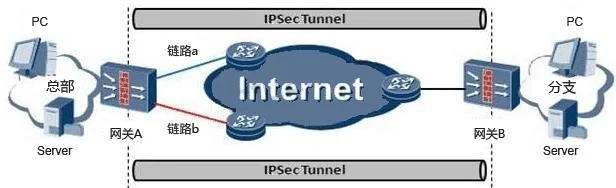

Shown below is an IPSec standby scenario, with main link A and backup link B. Assuming that on link B the next-hop IP address is 10.10.1.2 and 10.10.1.3, and we want to ensure that the primary and redundant backup link via IP-Link is configured. Which of the following is the correct static route configuration from the headquarters to the branch office?
Exhibit
Options
- A[USG] ip route-static 0.0.0.0 0.0.0.0 10.10.1.2 [USG] ip route-static 0.0.0.0 0.0.0.0 10.10.1.3
- B[USG] ip route-static 0.0.0.0 0.0.0.0 10.10.1.2 ip-link 1 [USG] ip route-static 0.0.0.0 0.0.0.0
- C[USG] ip route-static 0.0.0.0 0.0.0.0 10.10.1.2 track ip-link 1 [USG] ip route-static 0.0.0.0 0.0.0.0
- D[USG] ip route-static 0.0.0.0 0.0.0.0 10.10.1.2 preference 70 track ip-link 1 [USG] ip route-static
How the community answered
(17 responses)- A6% (1)
- B12% (2)
- C82% (14)
Community Discussion
No community discussion yet for this question.
