H12-323_V2.0 · Question #673
As shown in the figure, in the N+1 backup networking scenario, WAC3 is configured with a global priority of 5, and WAC1 and WAC2 are configured with a global priority of 6 Configure AP1's…
The correct answer is C. AP1 accesses WAC1, AP2 accesses WAC3, AP3 accesses WAC2, and AP4 accesses WAC3. See the full explanation below for the reasoning.
Advanced WLAN Technologies
Question
As shown in the figure, in the N+1 backup networking scenario, WAC3 is configured with a global priority of 5, and WAC1 and WAC2 are configured with a global priority of 6 Configure AP1's personality priority as 3 on WAC1, and AP3's personality priority as 3 on WAC2. If WAC1, WAC2, and WAC3 are all unloaded, which WAC device will AP1, AP2, AP3, and AP4 connect to?

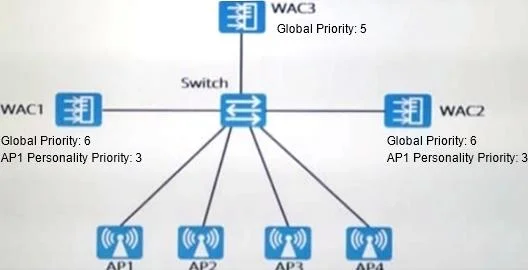

Exhibit
Options
- AAP1 accesses WAC2, AP2 accesses WAC1 or WAC2, AP3 accesses WAC1, AP4 accesses
- BAP1 accesses WAC2, AP2 accesses WAC3, AP3 accesses WAC1, and AP4 accesses WAC3
- CAP1 accesses WAC1, AP2 accesses WAC3, AP3 accesses WAC2, and AP4 accesses WAC3
- DAP1 accesses WAC1, AP2 accesses WAC1 or WAC2, AP3 accesses WAC2, and AP4 accesses
How the community answered
(29 responses)- A10% (3)
- B3% (1)
- C83% (24)
- D3% (1)
Topics
#N+1 backup#WAC priority#AP association#hot standby
