H12-323_V2.0 · Question #109
As shown in the figure, this is a WLAN network diagram of an enterprise. STA roams at layer 3 between TACs, and the user data forwarding method is tunnel forwarding. By default, which of the…
The correct answer is D. STA->AP2->TAC2->TAC1->Switch1->Internet. See the full explanation below for the reasoning.
Advanced WLAN Technologies
Question

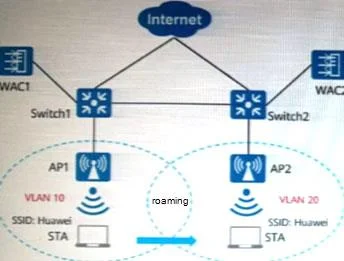

As shown in the figure, this is a WLAN network diagram of an enterprise. STA roams at layer 3 between TACs, and the user data forwarding method is tunnel forwarding. By default, which of the following is the traffic forwarding path after STA roaming?
Exhibit
Options
- ASTA->AP2->TAC2->TAC1->AP1->Switch1->Internet
- BSTA->AP2->TAC2->TAC1->AP1->TAC1->Switch1->Internet
- CSTA->AP2->7AC2->Switch2->Internet
- DSTA->AP2->TAC2->TAC1->Switch1->Internet
How the community answered
(66 responses)- A6% (4)
- B14% (9)
- C2% (1)
- D79% (52)
Topics
#L3 roaming#tunnel forwarding#TAC#traffic path
Community Discussion
No community discussion yet for this question.
