H12-261 · Question #50
Router HW1 and Router HW2 are connected to Network A and Network B respectively. Referring to the figure, if you want to set up an IPsec VPN tunnel between HW1 and HW2, which of the following ACL…
The correct answer is B. rule permit ip source 10.1.1.0.0.0.0.255 destination 10.1.2.0.0.0.0.255. See the full explanation below for the reasoning.
Question
Router HW1 and Router HW2 are connected to Network A and Network B respectively. Referring to the figure, if you want to set up an IPsec VPN tunnel between HW1 and HW2, which of the following ACL rules needs to be configured on HW1 to transmit the traffic across networks A and B pass through the encrypted VPN tunnel?

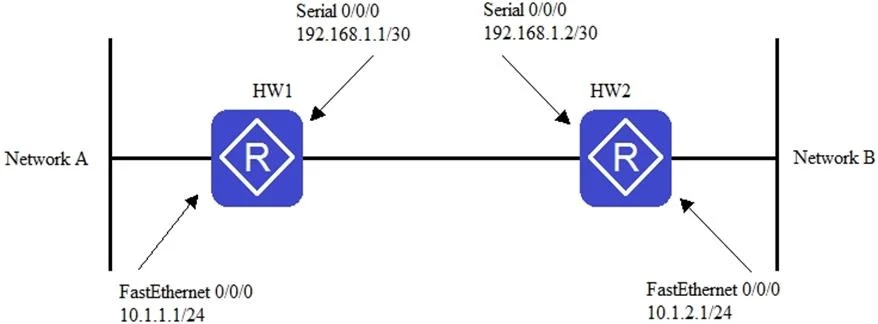

Exhibit
Options
- Arule permit ip source 10.1.2.0.0.0.0.255 destination 10.1.1.0.0.0.0.255
- Brule permit ip source 10.1.1.0.0.0.0.255 destination 10.1.2.0.0.0.0.255
- Crule permit ip source 10.1.1.0.0.0.0.255 destination 192.168.1.2.0
- Drule permit ip source 192.168.1.1.0 destination 10.1.2.0.0.0.0.255
- Erule permit ip source 192.168.1.1.0 destination 192.168.1.2.0
How the community answered
(21 responses)- A14% (3)
- B71% (15)
- C10% (2)
- E5% (1)
