FCSS_SDW_AR-7.6 · Question #58
Refer to the exhibits. The interface details, static route configuration, and firewall policies on the managed FortiGate device are shown. You want to configure a new SD-WAN zone, named Underlay…
The correct answer is D. Delete the firewall policies. You cannot add port1 as an SD-WAN member if it's already in use by an active firewall policy.
SD-WAN Deployment Strategies
Question

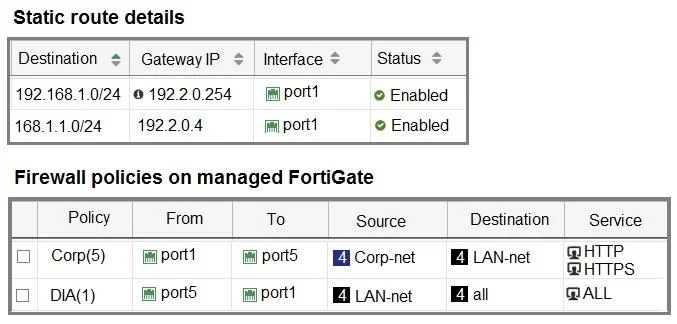

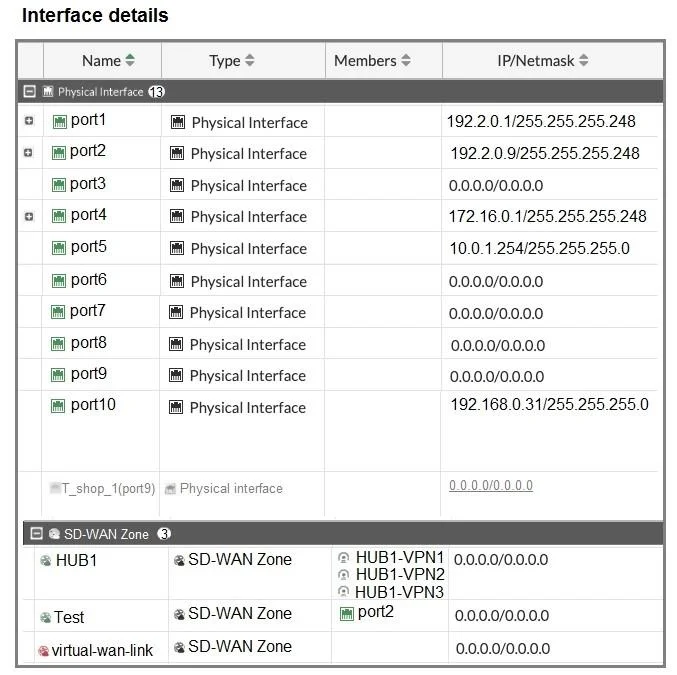

Refer to the exhibits. The interface details, static route configuration, and firewall policies on the managed FortiGate device are shown. You want to configure a new SD-WAN zone, named Underlay, that contains the interfaces port1 and port2. What must be your first action?
Exhibits
Options
- ADefine port1 as an SD-WAN member.
- BDelete the static routes.
- CDelete the SD-WAN Zone Test.
- DDelete the firewall policies.
How the community answered
(26 responses)- A8% (2)
- B4% (1)
- C12% (3)
- D77% (20)
Explanation
You cannot add port1 as an SD-WAN member if it's already in use by an active firewall policy.
Topics
#SD-WAN zone configuration#firewall policies#interface prerequisites#SD-WAN members
Community Discussion
No community discussion yet for this question.
