Question

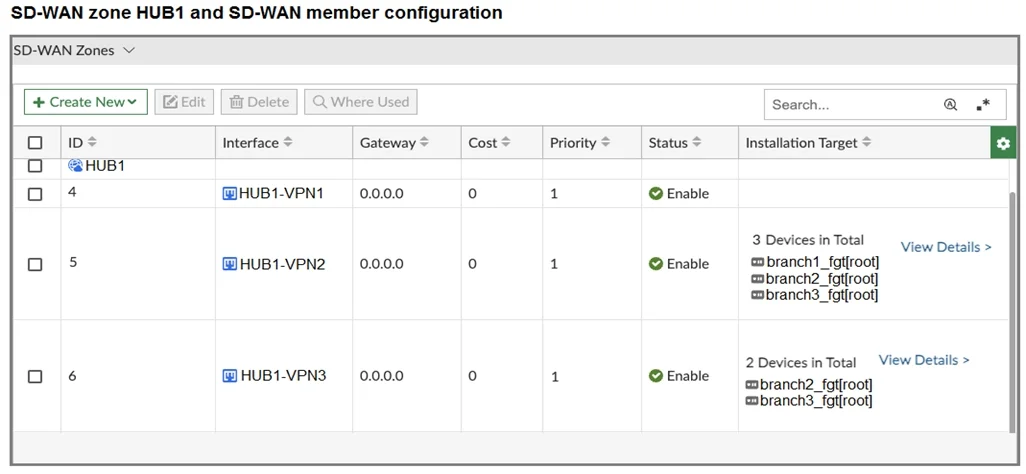

Refer to the exhibits. The first exhibit shows the SD-WAN zone HUB1 and SD-WAN member configuration from an SD-WAN template, and the second exhibit shows the output of command diagnose sys sdwan member collected on a FortiGate device. Which statement best describes what the diagnose output shows?
Exhibits
Options
- AThe diagnose output shows that HUB1-VPN1 and all HUBx-VPNy members are dead.
- BThe diagnose output does not correspond to a device configured with the SD-WAN template
- CThe diagnose output was collected on the device branch2_fgt.
- DThe diagnose output was collected on the device branch1_fgt.
How the community answered
(59 responses)- A25% (15)
- B12% (7)
- C7% (4)
- D56% (33)
Explanation

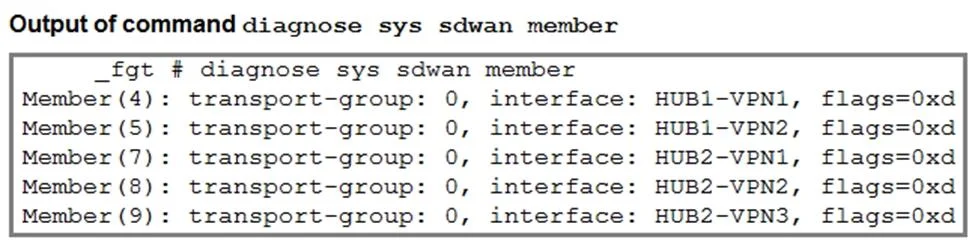

The diagnose output lists SD-WAN members 4(HUB1-VPN1), 5(HUB1-VPN2), 7(HUB2-VPN1), 8(HUB2-VPN2), and 9(HUB2-VPN3). It does not include member 6 (HUB1-VPN3). From the template, HUB1-VPN3 is installed only on branch2_fgt and branch3_fgt - not on branch1_fgt. Therefore, the output must be from branch1_fgt.
Topics
Community Discussion
No community discussion yet for this question.
