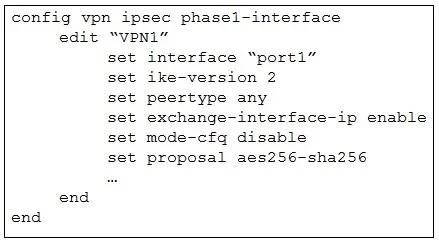

Refer to the exhibit. The administrator configured the IPsec tunnel VPN1 on a FortiGate device with the parameters shown in exhibit. Based on the configuration, which three conclusions can you draw…

Question

Exhibit

Options

• AThe tunnel interface IP address on the spoke side is provided by the hub.
• BThe remote end can be a third-party IPsec device.
• CThe administrator must manually assign the tunnel interface IP address on the hub side
• DThe remote end must support IKEv2.
• EThis configuration allows user-defined overlay IP addresses.

• A
  17% (8)
• B
  9% (4)
• C
  74% (35)

Explanation

The administrator must manually assign the tunnel interface IP address on the hub side The setting "set exchange-interface-ip enable" means the tunnel interface IP address is exchanged, but the hub side IP must be set manually. The remote end must support IKEv2 The command "set ike-version 2" explicitly configures IKE version 2 for this tunnel, so the remote device must support IKEv2. This configuration allows user-defined overlay IP addresses The tunnel interface enables user control over IP addressing for the overlay network, allowing custom IP assignments.
