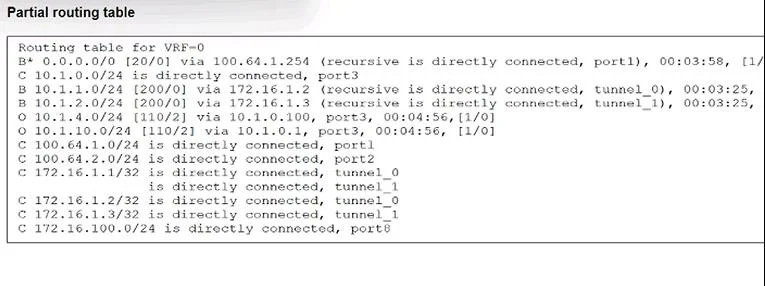

Refer to the exhibit, which shows a partial routing table. What two conclusions can you draw from the FortiGate output shown in the exhibit? (Choose two.)

Question

Exhibit

Options

• AFortiGate creates separate virtual interfaces for each VPN client.
• Badd-route is enabled in the tunnel IPSec phase 1 configuration.
• CFortiGate is not using the destination subnets of the quick mode selectors to populate the
• Dnet-device is disabled in the tunnel IPSec phase 1 configuration.

• A
  27% (6)
• B
  14% (3)
• C
  59% (13)

Explanation

When net-device is disabled (D), FortiGate does not create individual virtual interfaces per VPN client - instead, all traffic uses the shared tunnel interface. Because net-device is disabled, FortiGate also does not automatically inject routes derived from the Phase 2 quick mode selector subnets into the routing table, which is exactly what option C describes. Together, C and D paint a consistent picture: a tunnel-mode IPSec setup where route injection from selectors is suppressed.

Why A is wrong: Separate virtual interfaces per client are a feature of net-device being enabled - the opposite of what the routing table output implies.

Why B is wrong: If add-route were enabled, FortiGate would populate the routing table with the destination subnets from the quick mode selectors - directly contradicting C.

Memory tip: Think of it as two "off switches" working together - net-device OFF → no per-client virtual interfaces (kills A); add-route OFF → no auto-routes from Phase 2 selectors (kills B, confirms C). If you see a sparse routing table with no selector-derived subnets, both features are likely disabled.
