Advanced Routing

Question

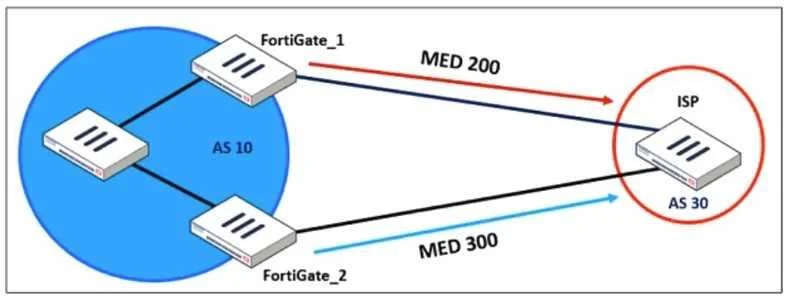

Refer to the exhibit, which shows a network diagram. An administrator would like to modify the MED value advertised from FortiGate_1 to a BGP neighbor in the autonomous system 30. What must the administrator configure on FortiGate_1 to implement this?

Exhibit

Options

Aroute-map-out
Bnetwork-import-check
Cprefix-list-out
Ddistribute-list-out

How the community answered

(40 responses)

A
73% (29)
B
3% (1)
C
8% (3)
D
18% (7)

Explanation

The Multi-Exit Discriminator (MED) is a BGP attribute used to influence the preferred path for incoming traffic from an external autonomous system (AS). The diagram shows that FortiGate_1 advertises MED 200, while FortiGate_2 advertises MED 300, meaning the ISP will prefer the route through FortiGate_1 because a lower MED is preferred in BGP. To modify the MED value on FortiGate_1 for routes advertised to AS 30, the administrator must configure a route-map-out. A route map can match specific routes and set the MED value before sending them to the BGP neighbor.

Topics

#BGP#MED attribute#route-map-out#eBGP policy
