FCP_ZCS_AD-7.4 · Question #6
Refer to the exhibits, which show the outputs of two commands taken on a Windows VM running in Azure. Which statement is true about the device with the IP address 10.0.2.4?
The correct answer is C. It is on the same VNET as the Windows VM. The trace output shows only one hop to reach 10.0.2.4, indicating that the destination is in the same Azure virtual network (VNet) as the Windows VM. Since the VM's IP is 10.0.1.4 and the destination is 10.0.2.4, they are in different subnets, but Azure allows direct routing…
Question
Refer to the exhibits, which show the outputs of two commands taken on a Windows VM running in Azure. Which statement is true about the device with the IP address 10.0.2.4?

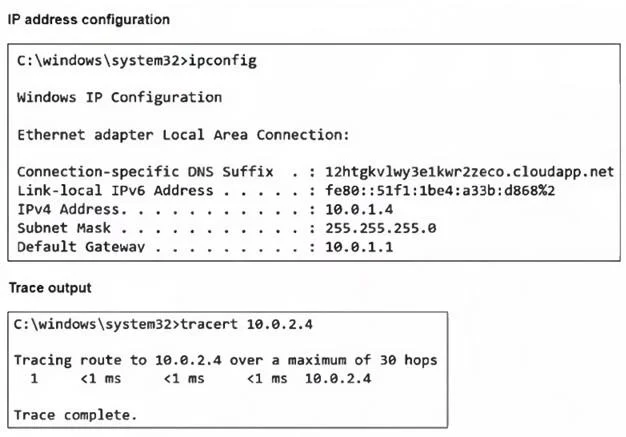

Exhibit
Options
- AIt is reachable through FortiGate in transparent mode
- BIt is provided by Azure for routing traffic among subnets
- CIt is on the same VNET as the Windows VM
- DIt is on the same subnet as the Windows VM
How the community answered
(21 responses)- A5% (1)
- C86% (18)
- D10% (2)
Explanation
The trace output shows only one hop to reach 10.0.2.4, indicating that the destination is in the same Azure virtual network (VNet) as the Windows VM. Since the VM's IP is 10.0.1.4 and the destination is 10.0.2.4, they are in different subnets, but Azure allows direct routing between subnets within the same VNet without additional hops.
