FCP_FML_AD-7.4 · Question #48

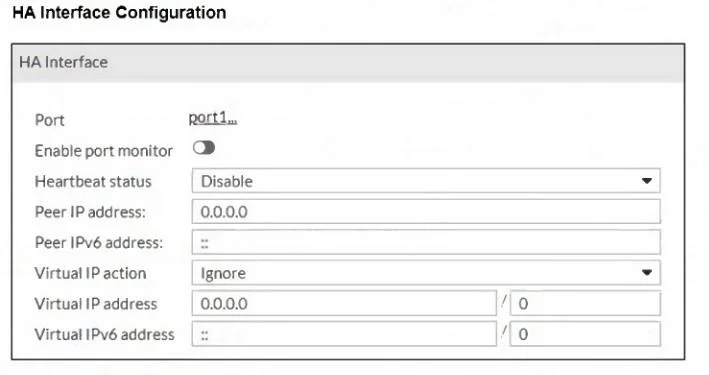

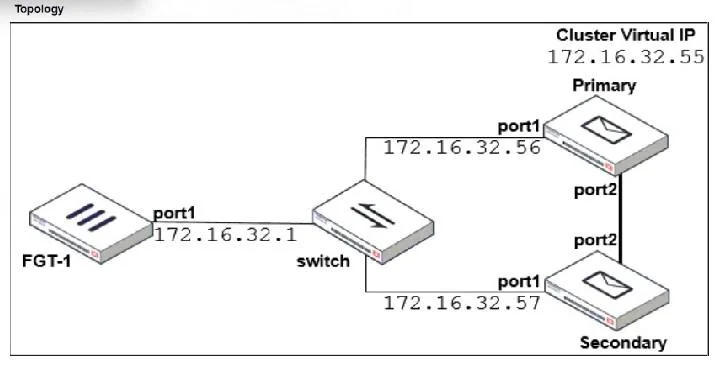

Refer to the exhibits. The exhibits display a topology diagram of a FortiMail cluster (Topology) and the primary HA interface configuration of the Primary FortiMail (HA Interface Configuration)…
The correct answer is A. In the Virtual IP action drop-down list, select Use. D. In the Virtual IP address field, type 172.16.32.55/24 E. In the Peer IP address field, type 172.16.32.57. Here are the three settings you should change on the Primary's HA port1 interface: - Set Virtual IP action to Use - Enter 172.16.32.55/24 as the Virtual IP address - Enter 172.16.32.57 as the Peer IP address With those in place, the Primary will advertise and answer on the…
Question
Refer to the exhibits. The exhibits display a topology diagram of a FortiMail cluster (Topology) and the primary HA interface configuration of the Primary FortiMail (HA Interface Configuration). Which three actions are recommended when configuring the primary FortiMail HA interface? (Choose three.)
Exhibits
Options
- AIn the Virtual IP action drop-down list, select Use.
- BDisable Enable port monitor
- CIn the Heartbeat status drop-down list, select Primary
- DIn the Virtual IP address field, type 172.16.32.55/24
- EIn the Peer IP address field, type 172.16.32.57
How the community answered
(46 responses)- A83% (38)
- B13% (6)
- C4% (2)
Explanation
Here are the three settings you should change on the Primary's HA port1 interface: - Set Virtual IP action to Use - Enter 172.16.32.55/24 as the Virtual IP address - Enter 172.16.32.57 as the Peer IP address With those in place, the Primary will advertise and answer on the cluster VIP (172.16.32.55) and know how to reach its Secondary peer (172.16.32.57).
Topics
Community Discussion
No community discussion yet for this question.
