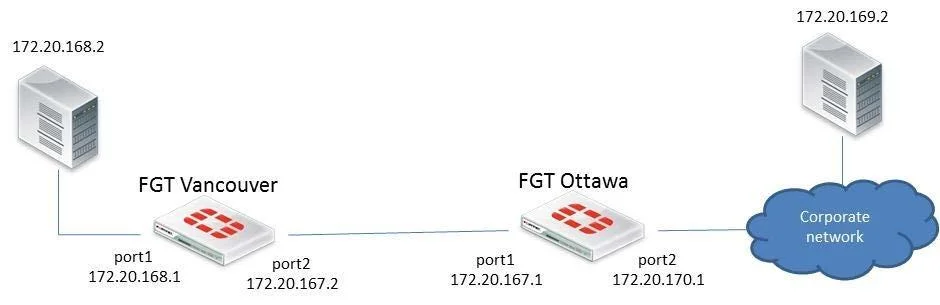

Examine the Exhibit shown below; then answer the question following it. Fortinet FCNSP Exam In this scenario, the Fortigate unit in Ottawa has the following routing table:

S* 0.0.0.0/0 [10/0] via 172.20.170.254, port2 C 172.20.167.0/24 is directly connected, port1 C 172.20.170.0/24 is directly connected, port2 Sniffer tests show that packets sent from the Source IP address 172.20.168.2 to the Destination IP address 172.20.169.2 are being dropped by the FortiGate unit located in Ottawa. Which of the following correctly describes the cause for the dropped packets?

Question

Examine the Exhibit shown below; then answer the question following it. Fortinet FCNSP Exam In this scenario, the Fortigate unit in Ottawa has the following routing table:

S* 0.0.0.0/0 [10/0] via 172.20.170.254, port2 C 172.20.167.0/24 is directly connected, port1 C 172.20.170.0/24 is directly connected, port2 Sniffer tests show that packets sent from the Source IP address 172.20.168.2 to the Destination IP address 172.20.169.2 are being dropped by the FortiGate unit located in Ottawa. Which of the following correctly describes the cause for the dropped packets?

Accepted Answer

B. The reverse path forwarding check.

Answer

A. The forward policy check.

Answer

C. The subnet 172.20.169.0/24 is NOT in the Ottawa FortiGate unit's routing table.

Answer

D. The destination workstation 172.20.169.2 does NOT have the subnet 172.20.168.0/24 in its routing table.
