CWDP-302 · Question #38
A Layer 1 sweep was performed at a customer location, and you are asked to review a capture taken during the survey. What is the meaning of the chart shown in the exhibit and how should it be…
The correct answer is C. Real Time FFT means Real Time Fast Fourier Transform and shows the max value of the signal detected. See the full explanation below for the reasoning.
Question
A Layer 1 sweep was performed at a customer location, and you are asked to review a capture taken during the survey. What is the meaning of the chart shown in the exhibit and how should it be interpreted?

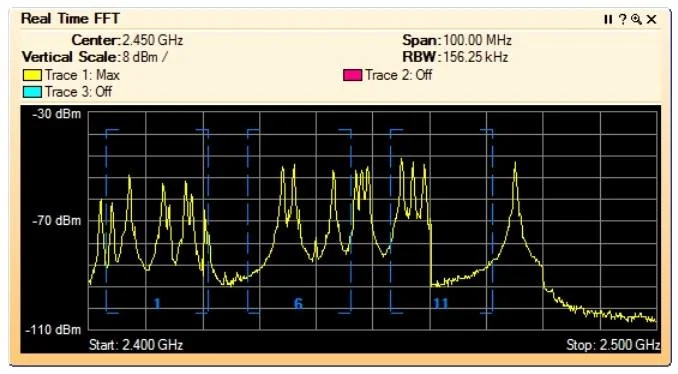

Exhibit
Options
- AReal Time FFT means Real Time First Fundamental Trace and shows the value of the first signal
- BReal Time FFT means Real Time Fast Frequency Timing and shows the RF pulses measured by the
- CReal Time FFT means Real Time Fast Fourier Transform and shows the max value of the signal detected
- DReal Time FFT means Real Time Frequency Fundamental Texture and shows the value of the noise
How the community answered
(31 responses)- A3% (1)
- B6% (2)
- C81% (25)
- D10% (3)
Community Discussion
No community discussion yet for this question.
