CV0-002 · Question #32
CV0-002 Question #32: Real Exam Question with Answer & Explanation
The correct answer is B: Update the PSK (Pre-shared key in Router2). B is correct. Since the problematic device is Router 2 and need to correct the PSK on it. E is correct. Because the Address Space on router 2 is supposed to be the subnet that's included in the VPN but it shows the on-prem subnet on Router 2.
Question
A company has decided to scale its e-commerce application from its corporate datacenter to a commercial cloud provider to meet an anticipated increase in demand during an upcoming holiday. The majority of the application load takes place on the application server under normal conditions. For this reason, the company decides to deploy additional application servers into a commercial cloud provider using the on-premises orchestration engine that installs and configures common software and network configurations. The remote computing environment is connected to the on- premises datacenter via a site-to-site IPSec tunnel. The external DNS provider has been configured to use weighted round-robin routing to load balance connections from the Internet. During testing, the company discovers that only 20% of connections completed successfully. Review the network architecture and supporting documents and fulfill these requirements: 1. Analyze the configuration of the following components: DNS, Firewall1, Firewall2, Router1, Rouler2, VPN and Orchestrator Server. 2. Identify the problematic device(s). Identify the correct options to provide adequate configuration for hybrid cloud architecture. Instruction: Only select a maximum of TWO options from the multiple choice question

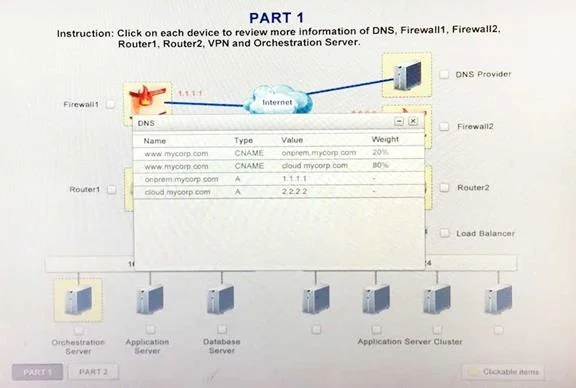

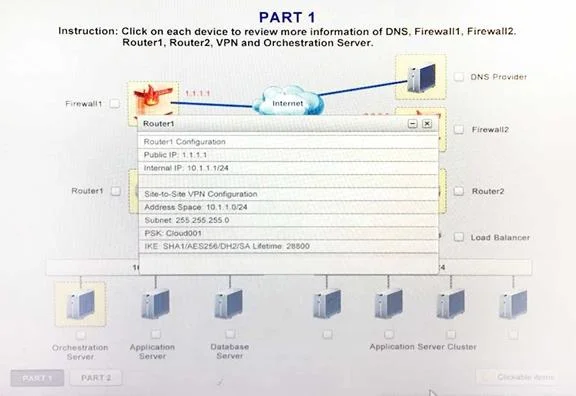

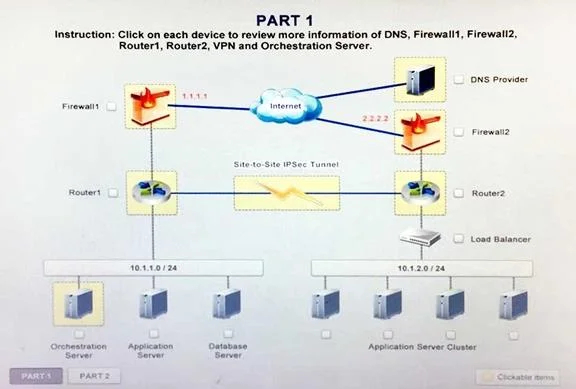

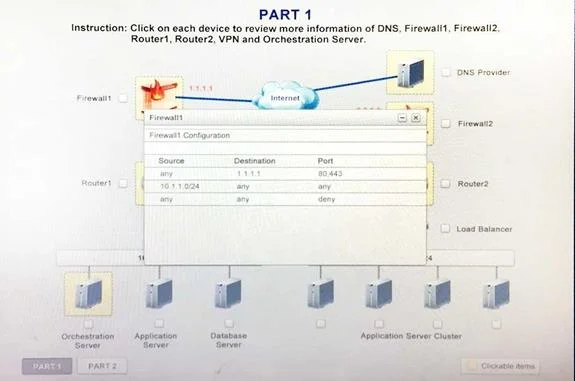

Exhibits
Options
- ADeploy a Replica of the Database Server in the Cloud Provider
- BUpdate the PSK (Pre-shared key in Router2)
- CUpdate the A record on the DNS from 2.2.2.2 to 1.1.1.1
- DPromote deny All to allow All in Firewall1 and Firewall2
- EChange the Address Space on Router2
- FChange internal IP Address of Router1
- GReverse the Weight property in the two CNAME records on the DNS
- HAdd the Application Server at on-premises to the Load Balancer
Explanation
B is correct. Since the problematic device is Router 2 and need to correct the PSK on it. E is correct. Because the Address Space on router 2 is supposed to be the subnet that's included in the VPN but it shows the on-prem subnet on Router 2.
