Specific Approaches to Testing AI-based Systems

Question

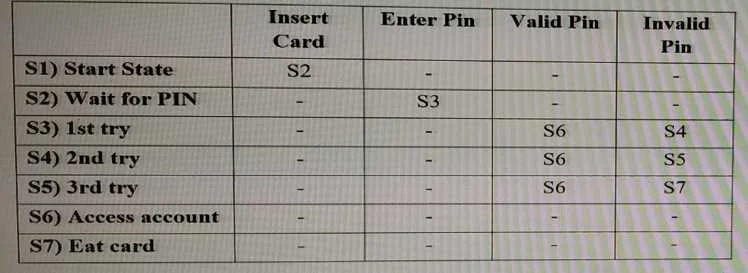

A PIN entry component of an ATM system has been developed using the following state table:

Using the state transition test technique, how many 0-switch test cases are needed to achieve 100% 0-switch coverage?

Exhibit

Options

How the community answered

(66 responses)

A
5% (3)
B
8% (5)
C
74% (49)
D
14% (9)

Explanation

A 0-switch test case is a test case that covers one transition from one state to another. To achieve 100% 0-switch coverage, all the transitions in the state table must be tested. There are eight transitions in the state table, as shown by the arrows. Therefore, eight 0-switch test cases are needed. Reference = ISTQB Certified Tester Advanced Level Syllabus Technical Test Analyst1, page 2 How to Design Test Cases Using State Transition Testing Technique?2, section "0-switch coverage" 0 and 1 - Switch Coverage in State Transition Testing?3, answer by Marco Filippone

Topics

#state transition testing#0-switch coverage#ATM system#test coverage

Community Discussion

No community discussion yet for this question.
