AZ-700 · Question #163
You have an internal Basic Azure Load Balancer named LB1 that has two frontend IP addresses. The backend pool of LB1 contains two Azure virtual machines named VM1 and VM2. You need to configure the…
The correct answer is A. Enable Floating IP. If you want to reuse same port for both load balancing rules then Floating IP needs to be enabled. https://learn.microsoft.com/en-us/azure/load-balancer/load-balancer-multivip-overview#rule-type- 2-backend-port-reuse-by-using-floating-ip
Question
You have an internal Basic Azure Load Balancer named LB1 that has two frontend IP addresses. The backend pool of LB1 contains two Azure virtual machines named VM1 and VM2. You need to configure the rules on LB1 as shown in the following table. What should you do for each rule?

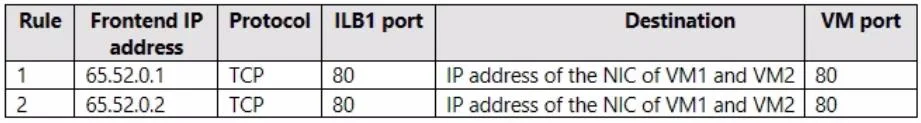

Exhibit
Options
- AEnable Floating IP.
- BDisable Floating IP.
- CSet Session persistence to Enabled.
- DSet Session persistence to Disabled.
How the community answered
(41 responses)- A76% (31)
- B5% (2)
- C15% (6)
- D5% (2)
Explanation
If you want to reuse same port for both load balancing rules then Floating IP needs to be enabled. https://learn.microsoft.com/en-us/azure/load-balancer/load-balancer-multivip-overview#rule-type- 2-backend-port-reuse-by-using-floating-ip
Community Discussion
No community discussion yet for this question.
