Drag and Drop Question You are developing a web service that will run on Azure virtual machines that use Azure Storage. You configure all virtual machines to use managed identities. You have the following requirements: - Secret-based authentication mechanisms are not permitted for accessing an Azure Storage account. - Must use only Azure Instance Metadata Service endpoints. You need to write code to retrieve an access token to access Azure Storage. To answer, drag the appropriate code segments to the correct locations. Each code segment may be used once or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point. Answer:

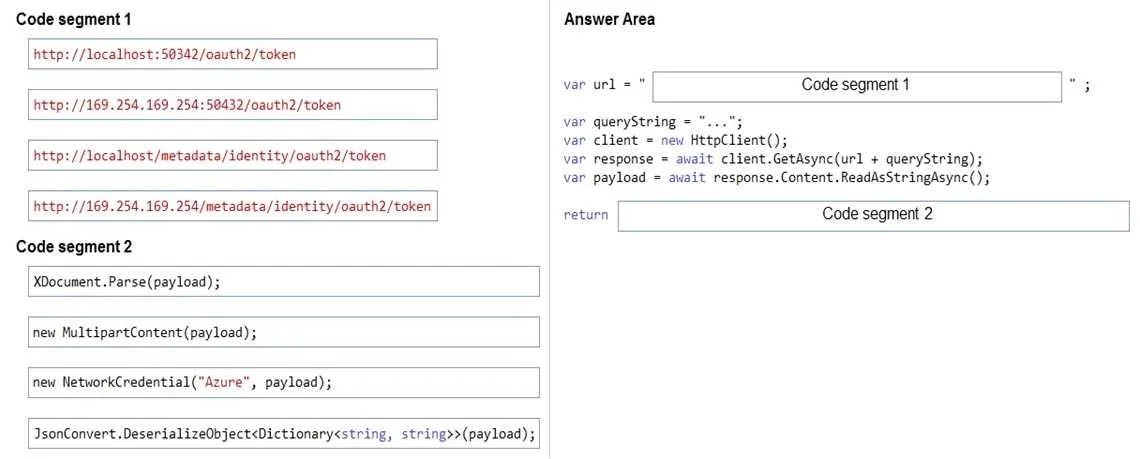

Exhibit

Answer Area

Drag items

http://localhost:50342/oauth2/tokenhttp://169.254.169.254/metadata/identity/oauth2/tokenhttp://169.254.169.254/oauth2/tokenhttp://localhost/metadata/identity/oauth2/tokenXDocument.Parse(payload);new MultipartContent(payload);new NetworkCredential("Azure", payload);JsonConvert.DeserializeObject<Dictionary<string, string>>(payload);

Correct arrangement

http://169.254.169.254/metadata/identity/oauth2/token
JsonConvert.DeserializeObject<Dictionary<string, string>>(payload);

Explanation

Azure Managed Identity Token Retrieval - Explanation

Context

When VMs use managed identities, they authenticate to Azure services without secrets (no passwords, connection strings, or keys). The token is fetched from the Azure Instance Metadata Service (IMDS), which is a local HTTP endpoint only accessible from within the VM.

Placement 1: `http://169.254.169.254/metadata/identity/oauth2/token`

Why this URL?

169.254.169.254 is the well-known link-local IP address for the Azure Instance Metadata Service (IMDS). The correct path for managed identity token requests is /metadata/identity/oauth2/token.

The full request looks like:

GET http://169.254.169.254/metadata/identity/oauth2/token
    ?api-version=2018-02-01
    &resource=https://storage.azure.com/
Headers: Metadata: true

Why the others are wrong:

http://localhost:50342/oauth2/token - This was the old Azure Instance Metadata Service endpoint used by the legacy VM extension (IMDS v1/MSI extension). It is deprecated and no longer the correct approach.
http://169.254.169.254/oauth2/token - Missing the /metadata/identity path segment. This is not a valid IMDS endpoint.
http://localhost/metadata/identity/oauth2/token - Uses localhost instead of the IMDS IP. IMDS is not served on localhost; it requires the specific link-local address.

Placement 2: `JsonConvert.DeserializeObject<Dictionary<string, string>>(payload)`

Why this deserializer?

The IMDS endpoint returns a JSON response containing the access token and related fields:

{
  "access_token": "eyJ0...",
  "expires_in": "3599",
  "token_type": "Bearer",
  ...
}

JsonConvert.DeserializeObject<Dictionary<string, string>>(payload) (from Newtonsoft.Json) correctly parses this JSON string into a key-value dictionary, from which you'd extract payload["access_token"].

Why the others are wrong:

XDocument.Parse(payload) - Parses XML, not JSON. IMDS returns JSON.
new MultipartContent(payload) - Used for constructing HTTP multipart form bodies. Has nothing to do with parsing a response.
new NetworkCredential("Azure", payload) - Used for username/password credentials, which directly violates the requirement that secret-based authentication is not permitted.

Common Misconceptions

Mistake	Why it's wrong
Using `localhost:50342`	That's the deprecated MSI VM extension endpoint, not modern IMDS
Thinking IMDS returns XML	It always returns JSON
Using `NetworkCredential`	That's secret-based auth - explicitly prohibited by the requirements
Omitting the `Metadata: true` header	IMDS requires this header; without it, the request is rejected to prevent SSRF attacks

Topics

#Managed Identities#IMDS#Azure Storage Authentication#Access Tokens
